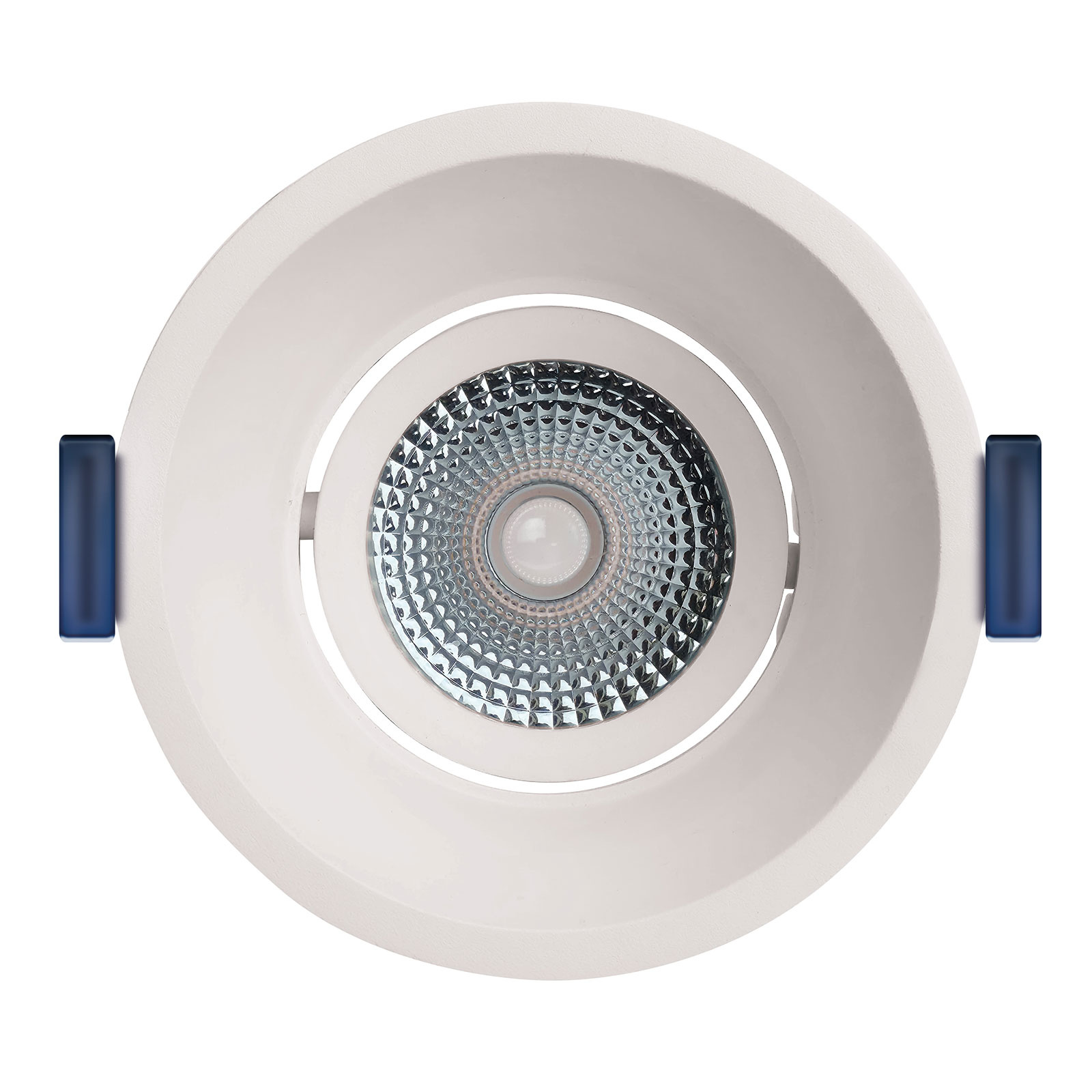

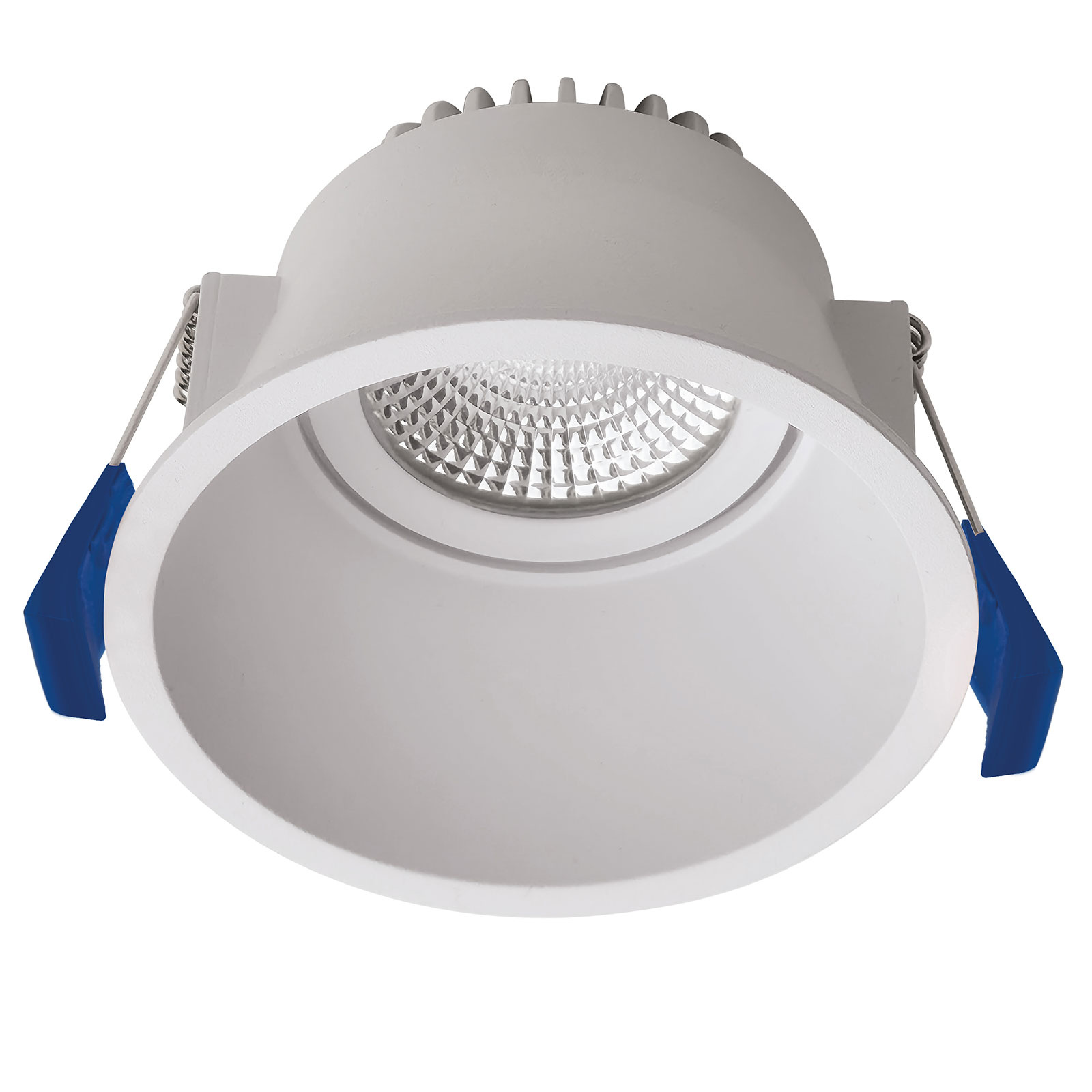

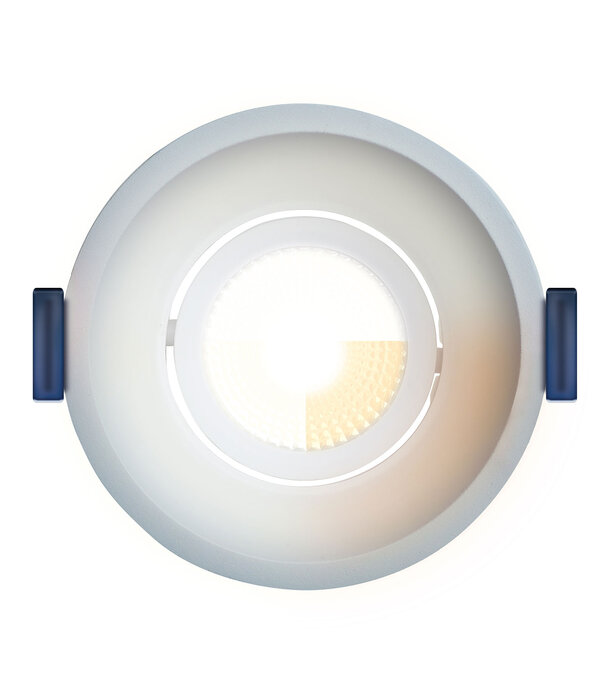

ED-10096 Led recessed downlight deepened IP54, CCT 2700K/3000K/4000K, round, white, 90mm

Available soon!

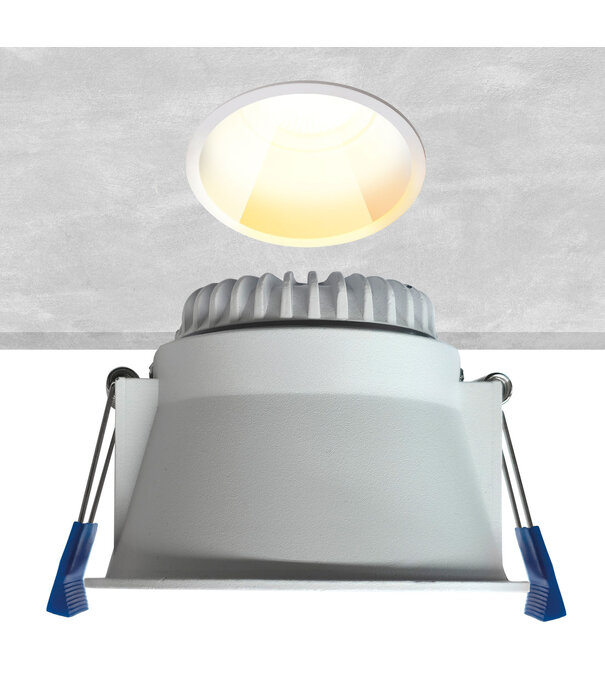

✓ Recessed downlight deepened
✓ Compact transformer (55.5x34x20mm)
✓ IP54 (Splash-proof, suitable for bathroom)
✓ Dimmable up to 5%

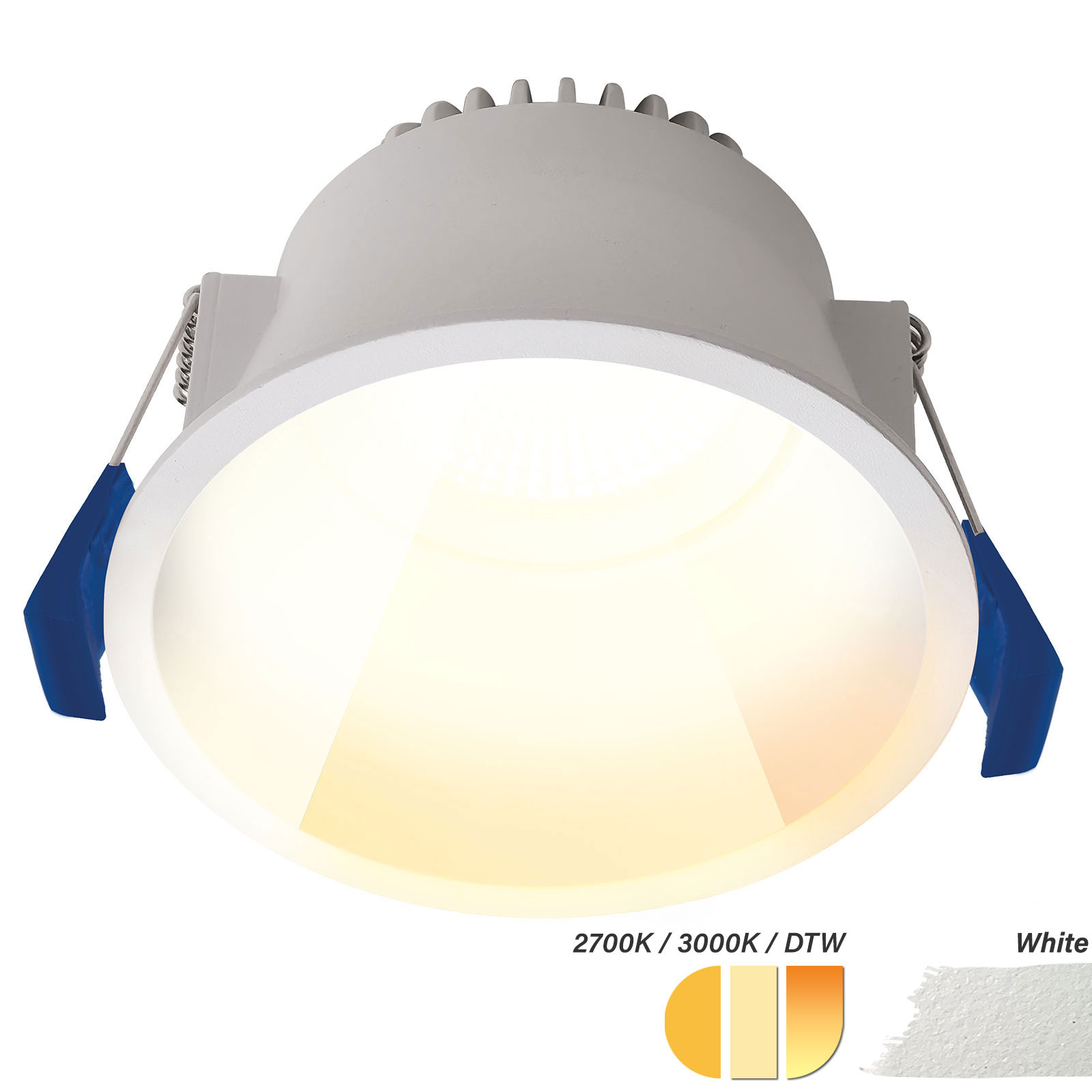

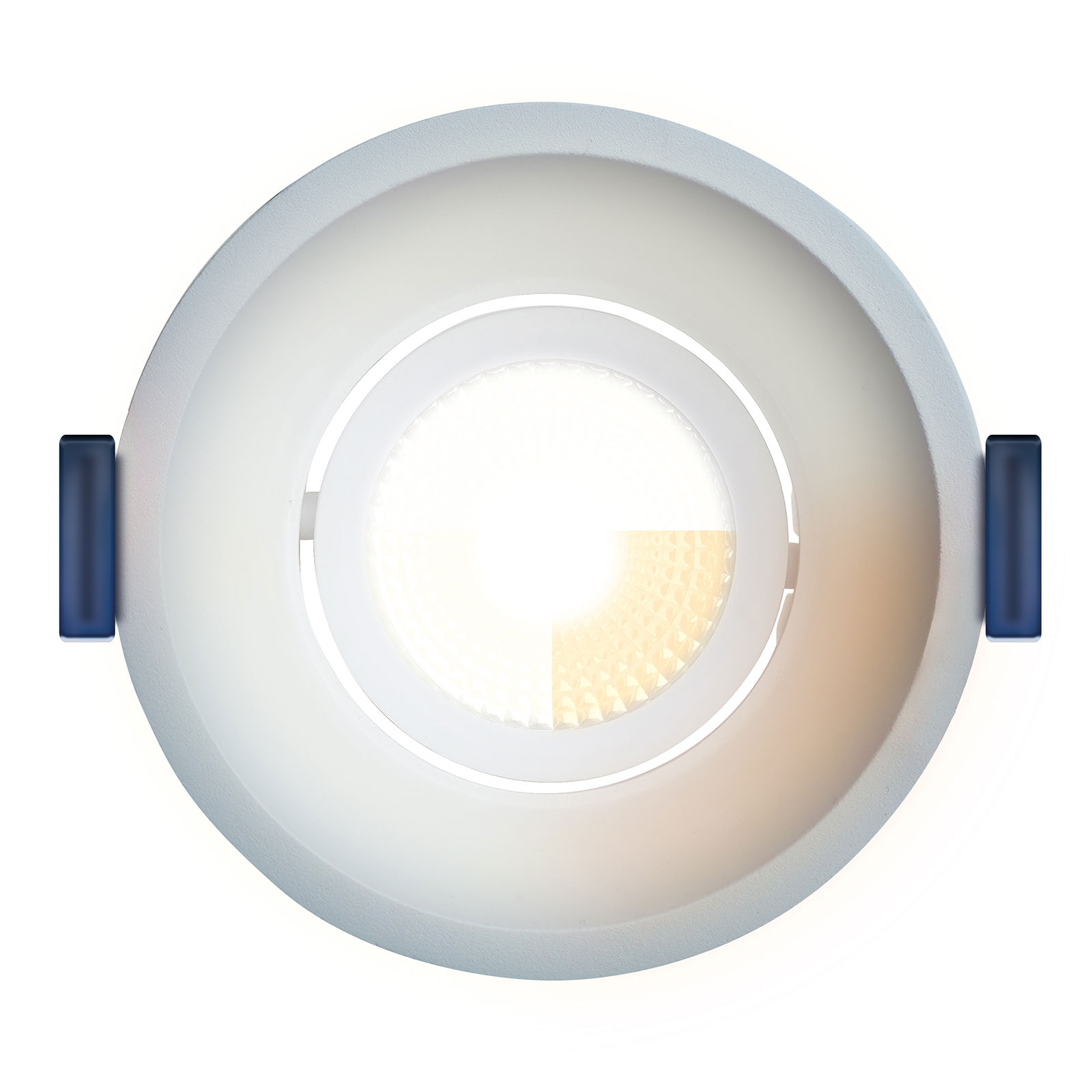

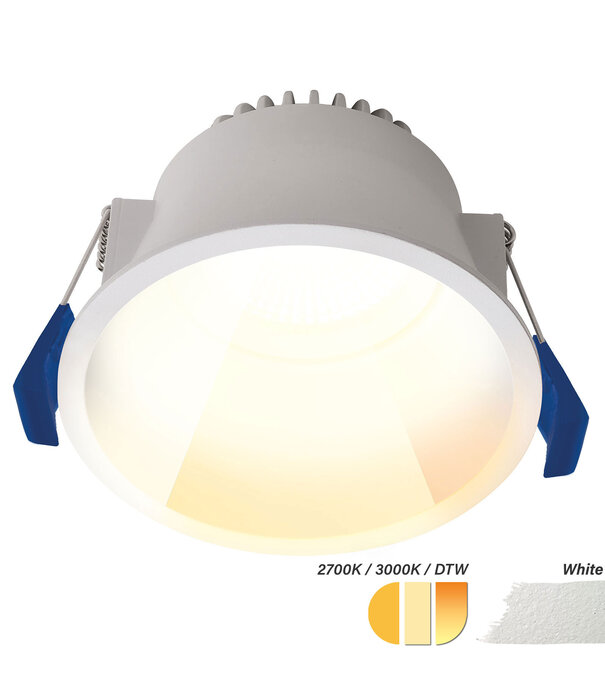

✓ 2700K, 3000K, 4000K (adjustable with slider on transformer)
✓ Matt white, round
✓ Good light distribution (60⁰)

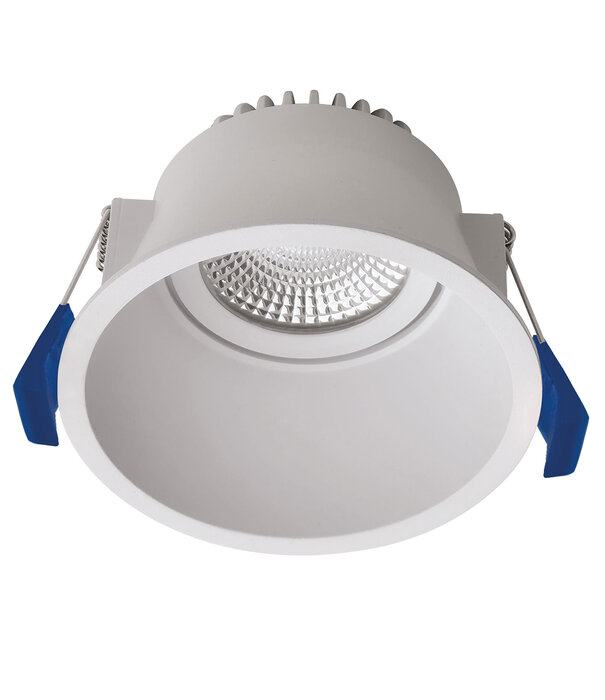

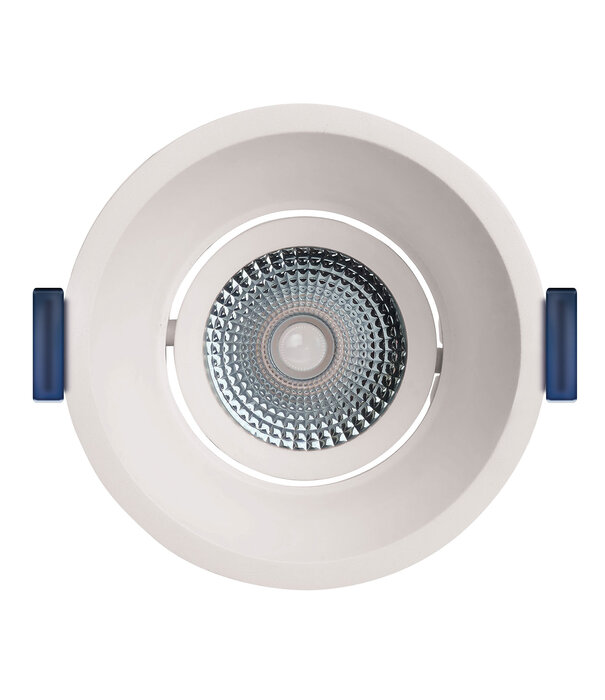

✓ COB chip & reflection technology
✓ High colour fastness (CRI90)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

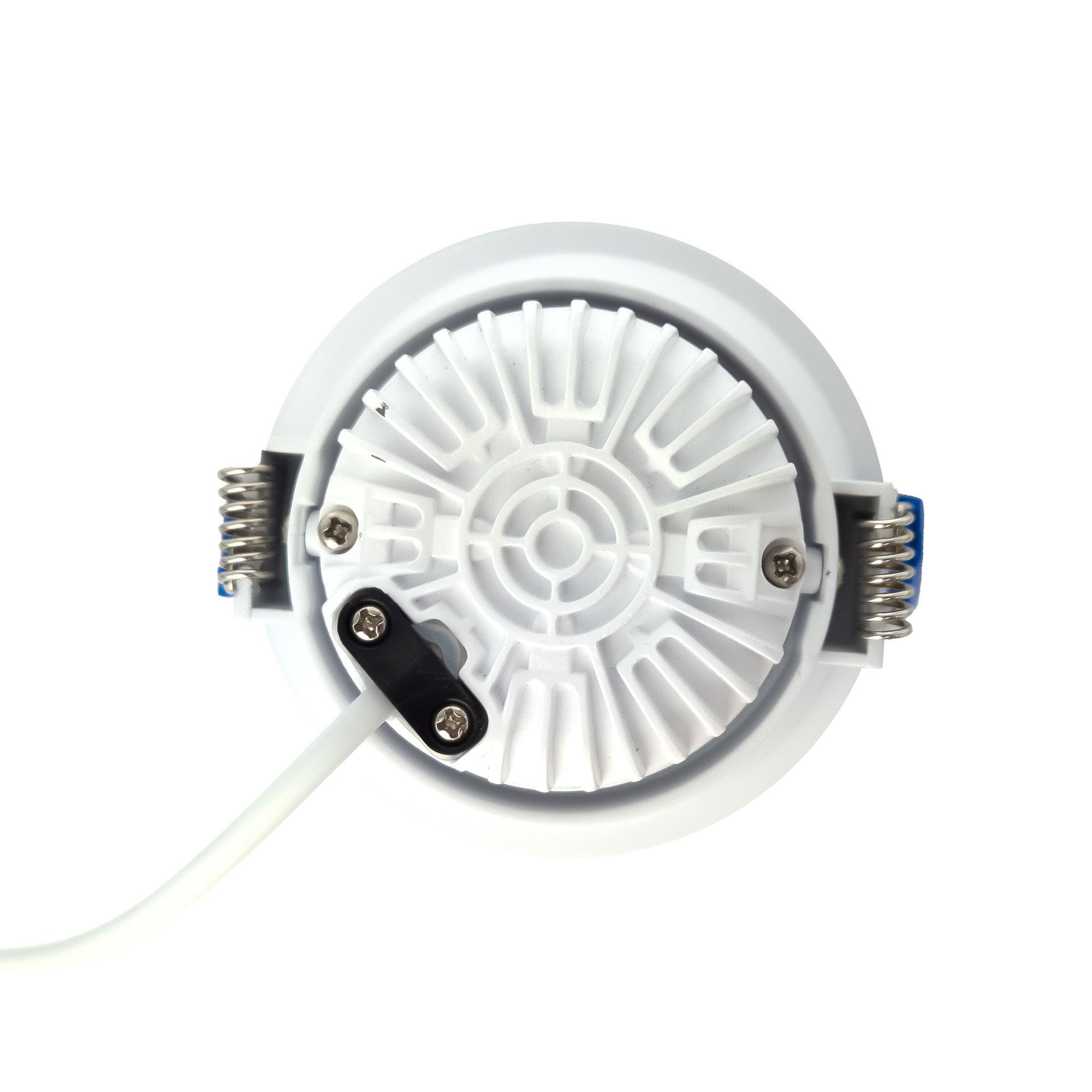

Key features of this white, round recessed LED spotlight are its IP54 value (splash-proof), the compact transformer (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector, which makes it easy and safe to realise a parallel connection. Excellent dimmability with all EcoDim LED dimmers. The light colour is easy to change with the slider on the LED transformer.

Cutting size: Ø90mm
Outside edge: Ø100mm

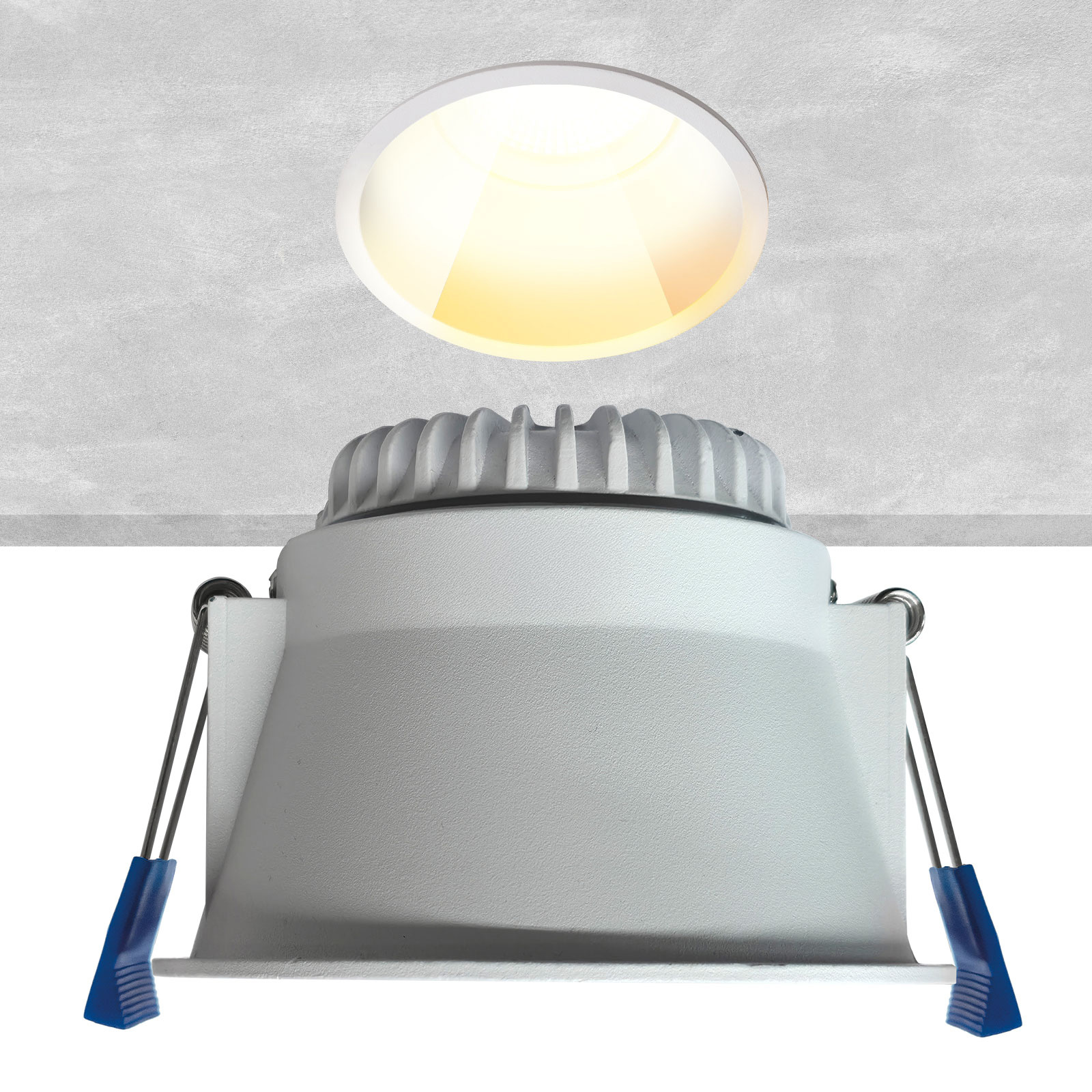

Recessed depth: 72mm

Spot light source: Ø45mm

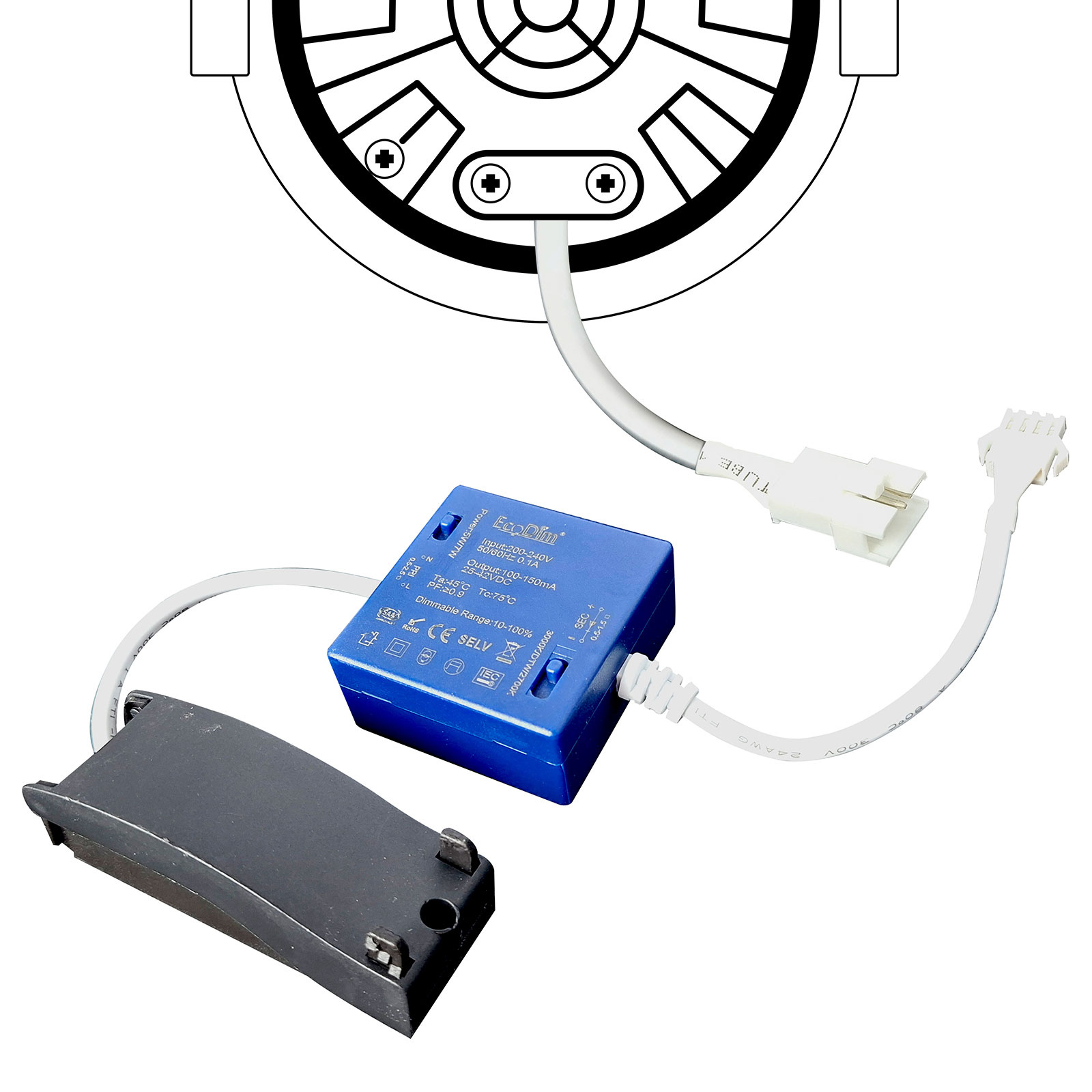

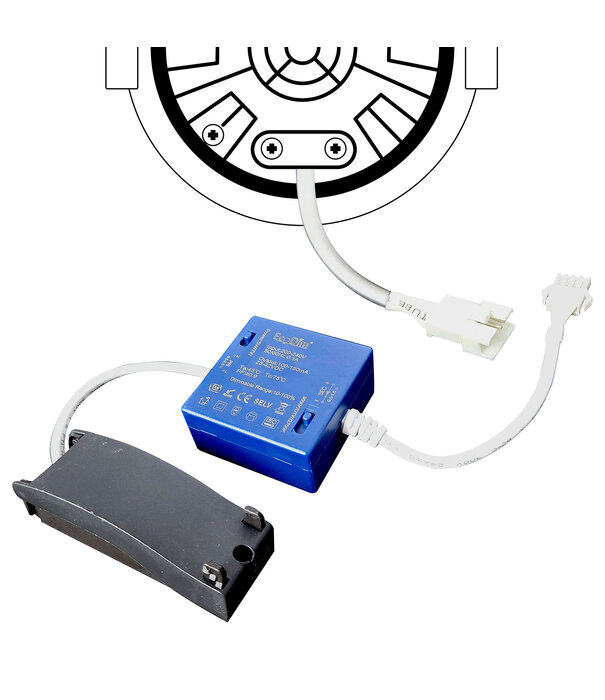

Included led transformer:
Length: 55mm
Width: 34mm
Depth: 23mm

Input 220-240VAC / Output 14-25VDC
Can be connected directly to 230V.

General information

Wattage: 5W
Lumen: 520 lumens
CRI: >90
Light angle: 60⁰
Voltage: 230V
Dimmable: Yes
Lifespan: 25,000 hours
