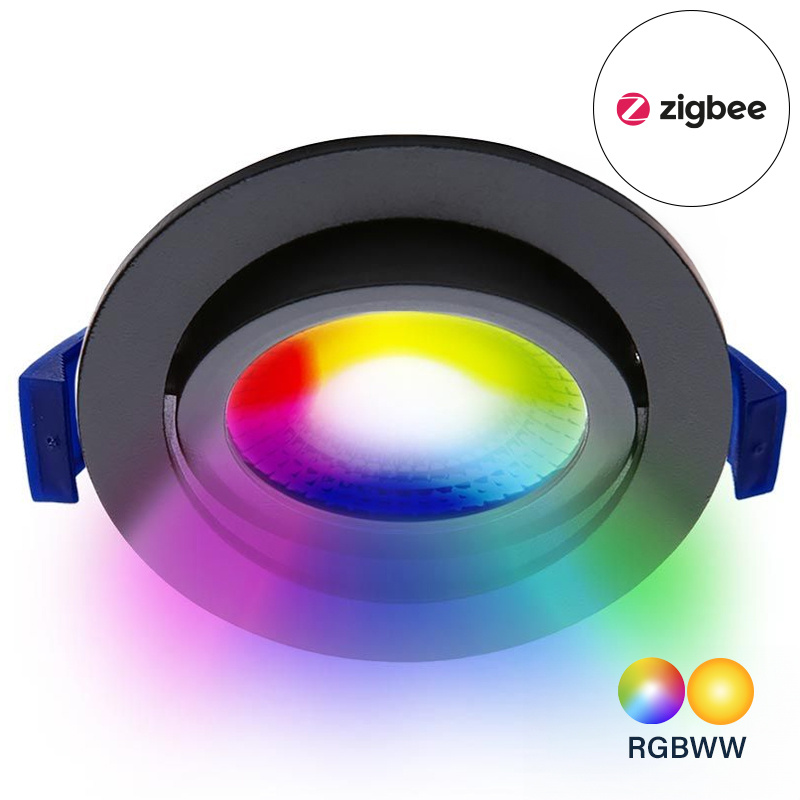

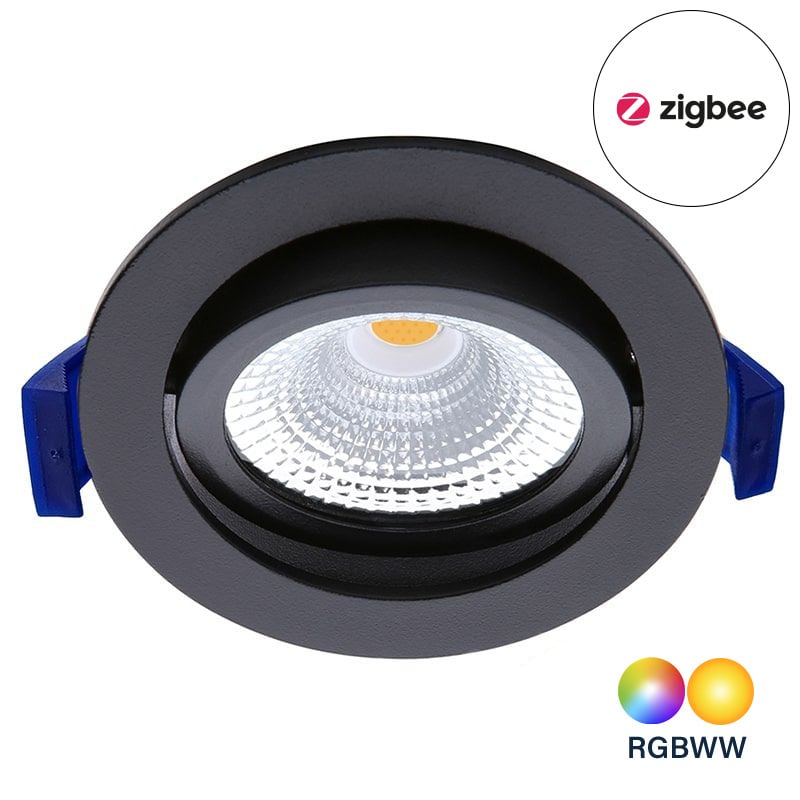

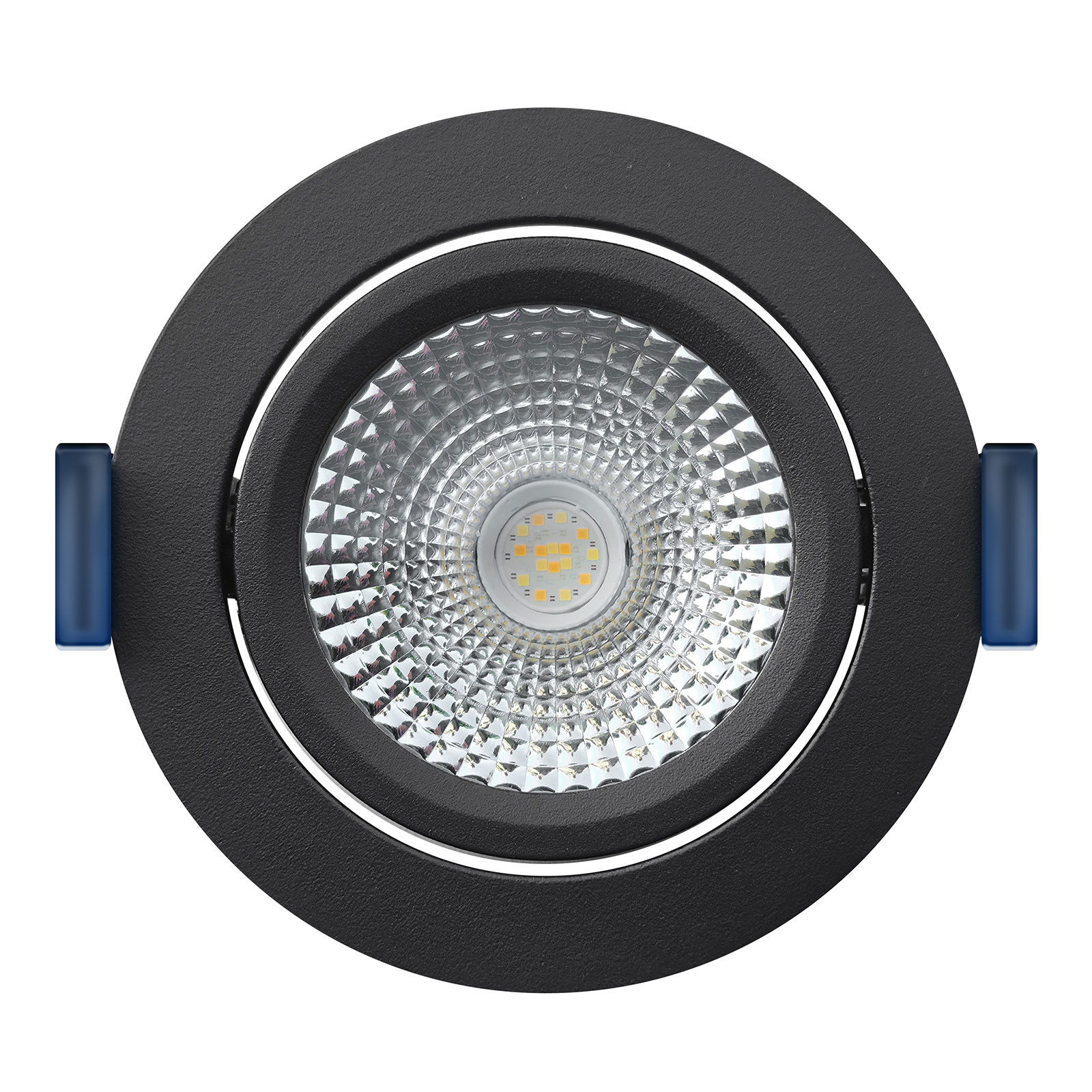

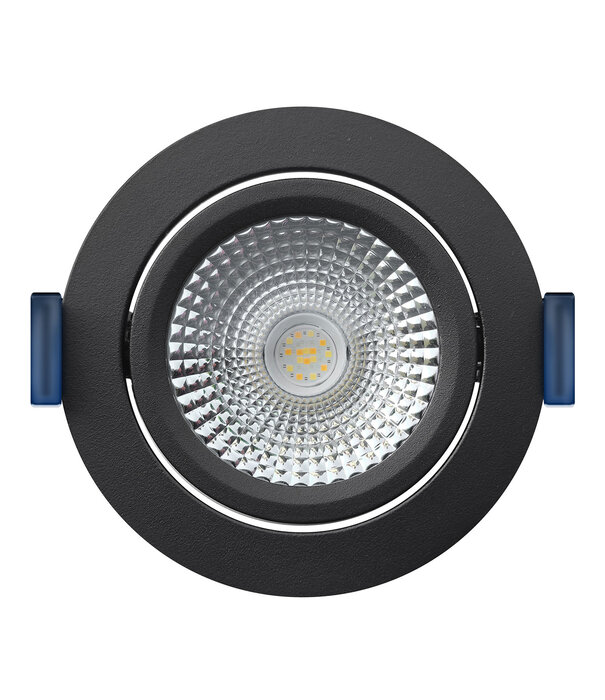

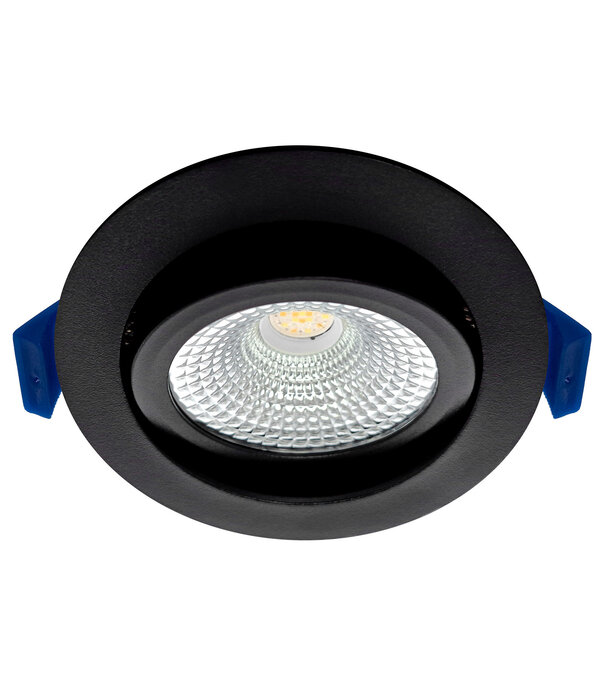

ED-10080 Zigbee dimmable LED recessed spotlight black, 2700K-6000K/RGB, small recessed depth, IP54

✓ Zigbee
✓ Touchlink support
✓ Voice support (via Amazon Alexa & Google Assistant)
✓ Small built-in depth (23mm)
✓ IP54 (Splash-proof, Suitable for bathroom)
✓ Dimmable to 0%

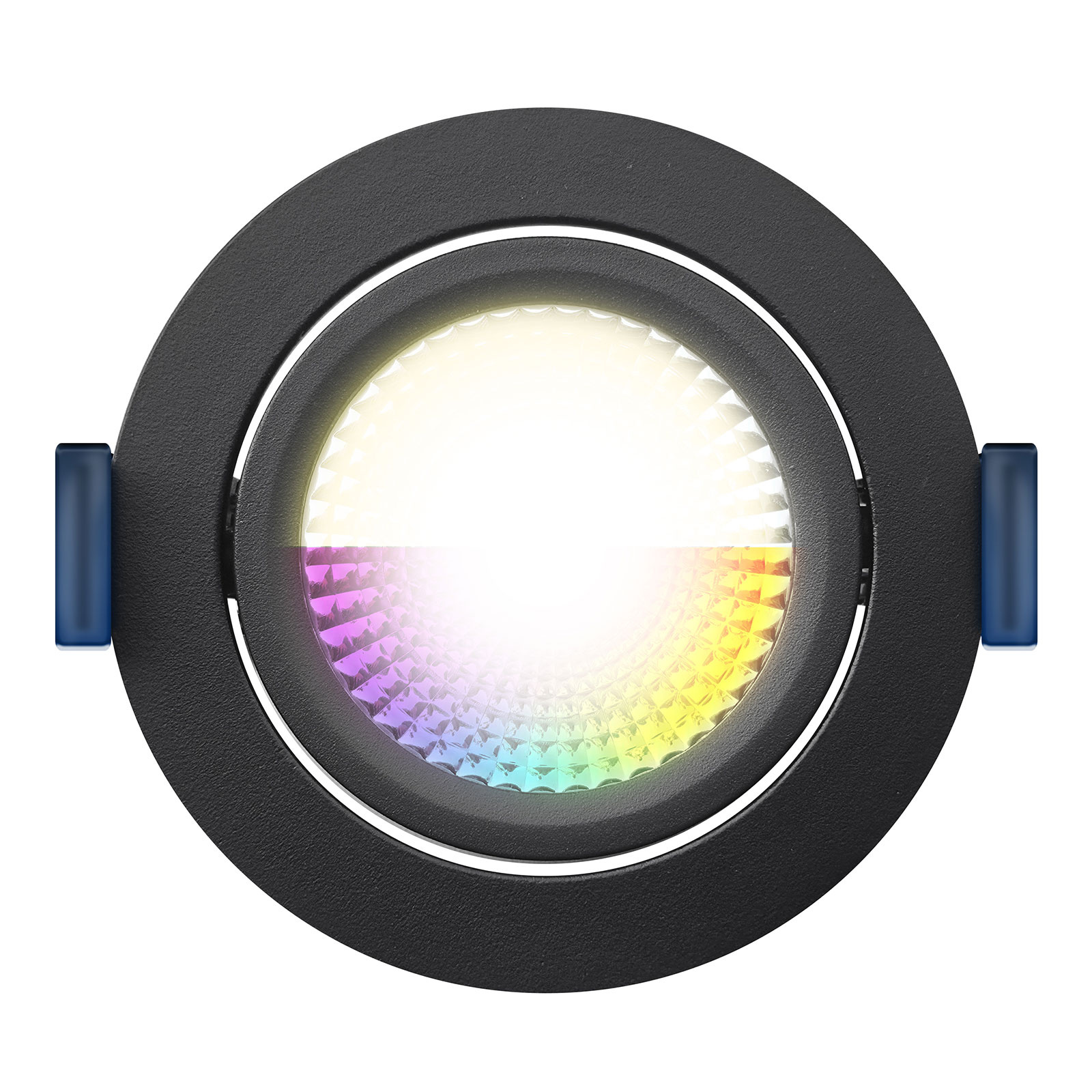

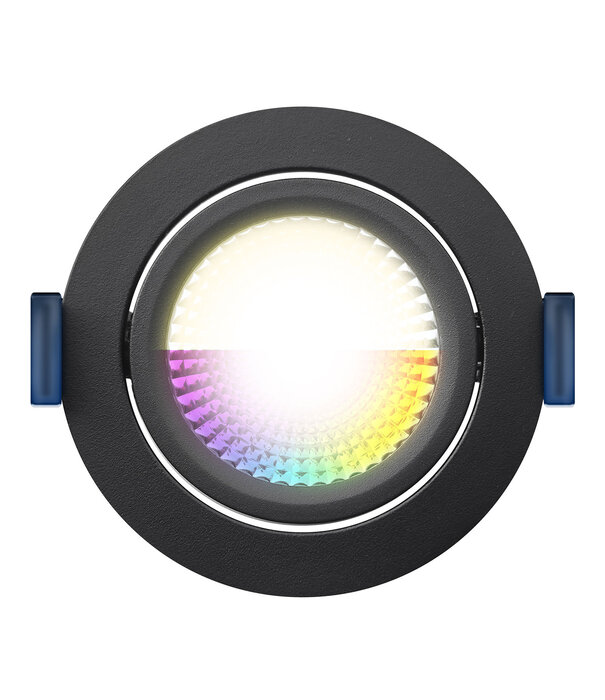

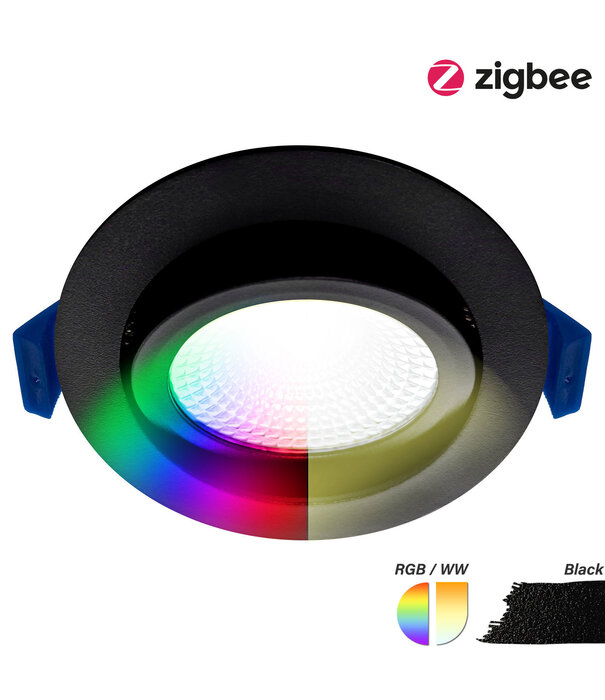

✓ 2700K-6000K and RGB

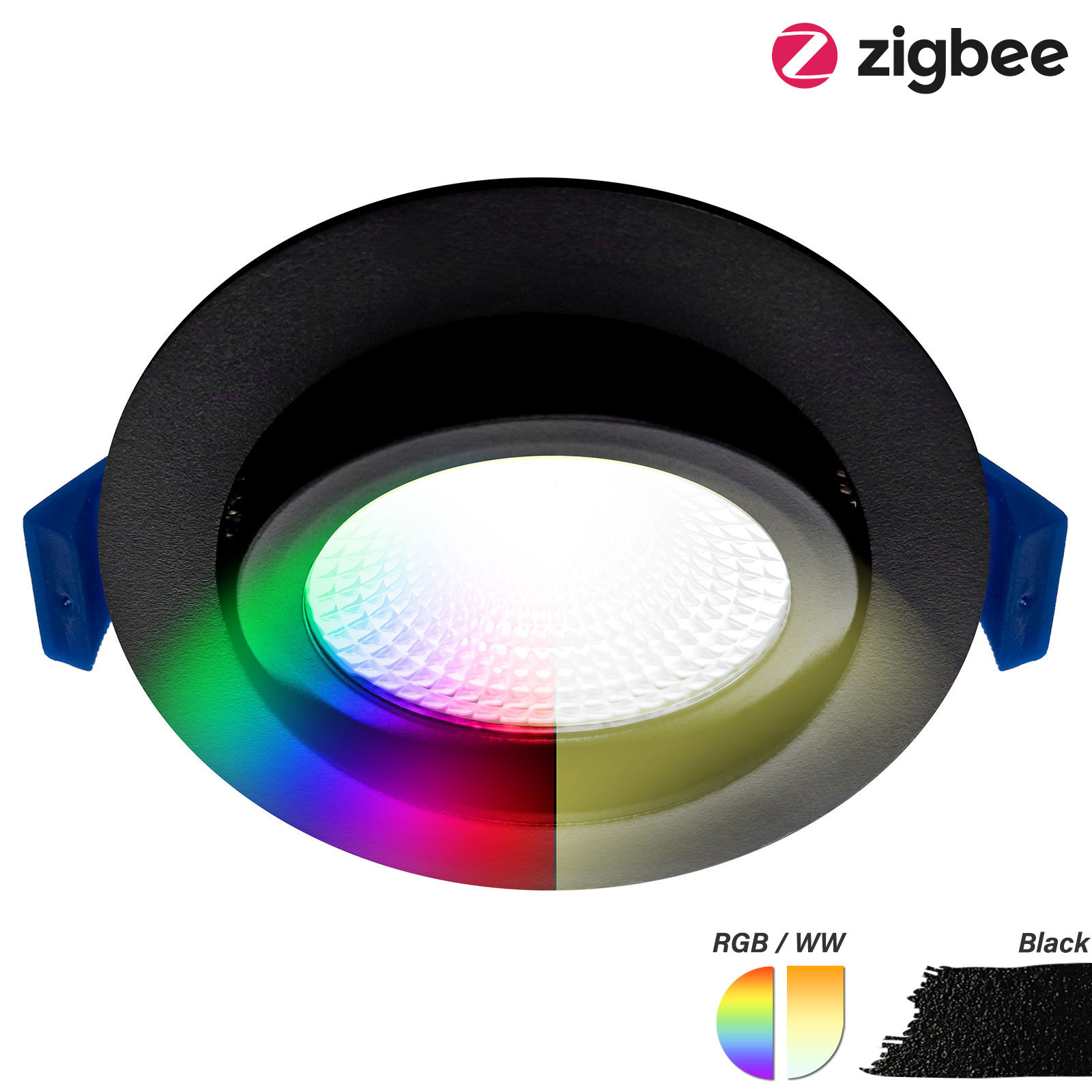

✓ Matt black, round

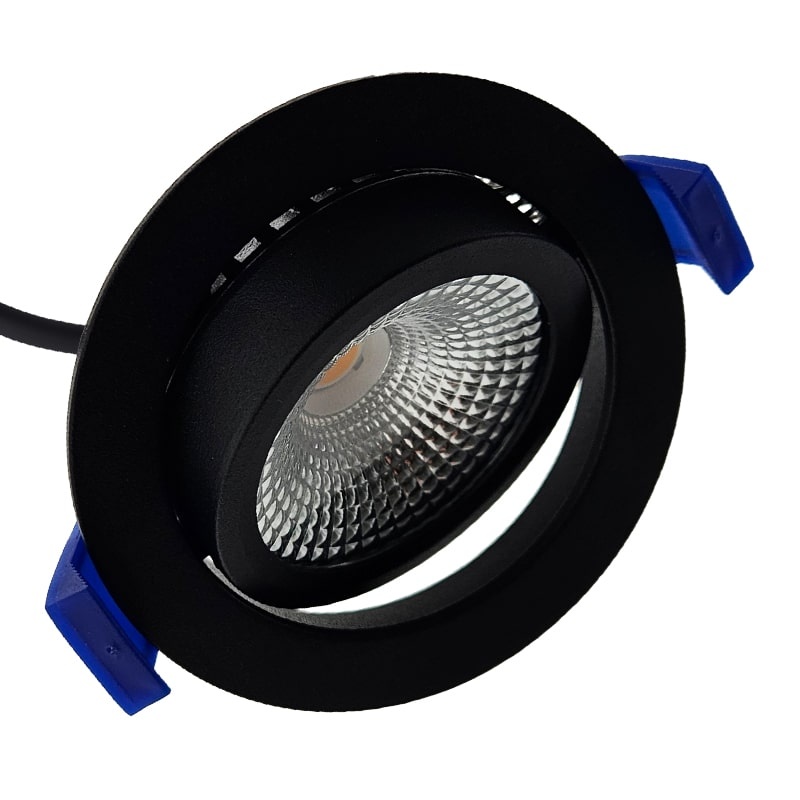

✓ Tiltable
✓ Good light distribution (60⁰)

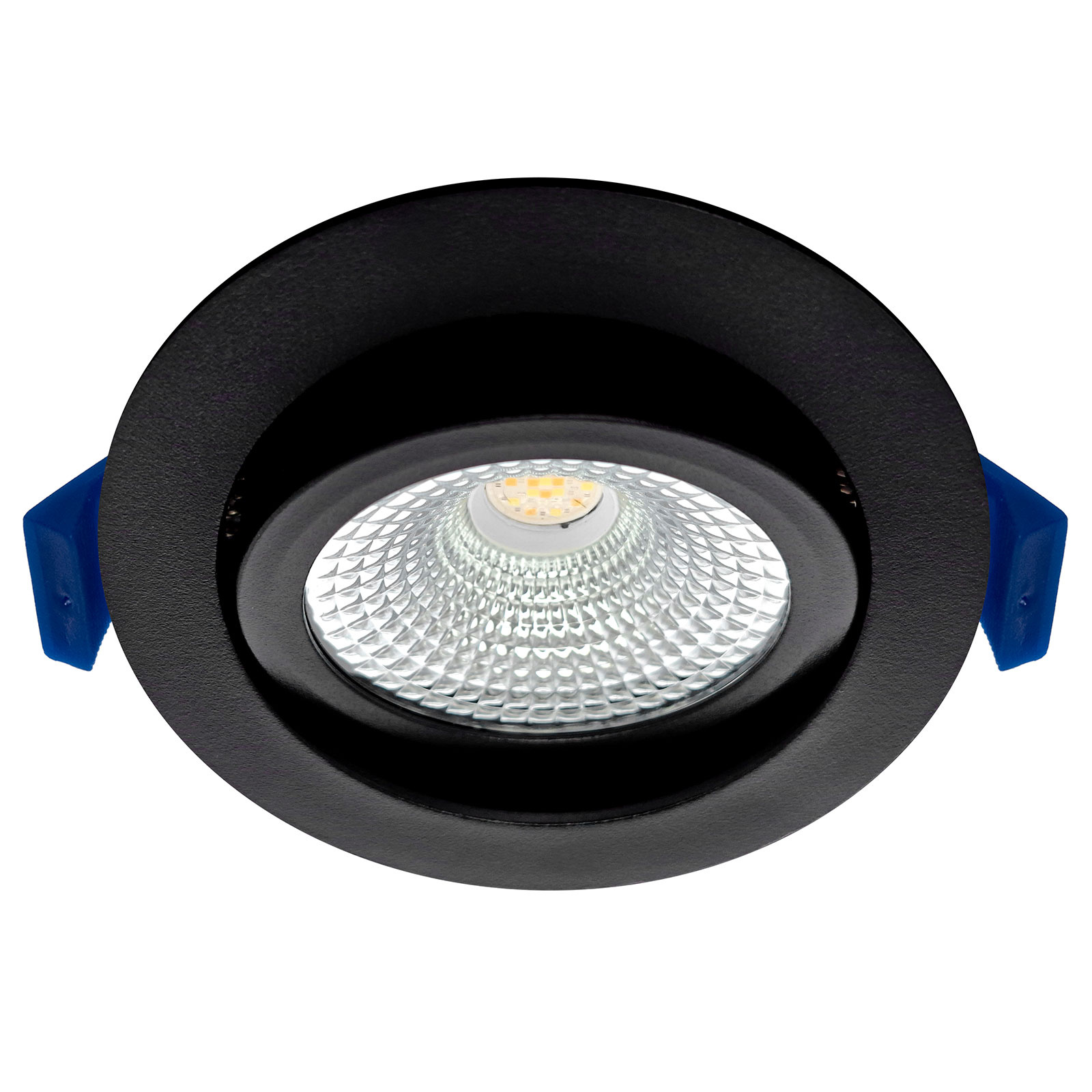

✓ COB chip & Reflective Technology
✓ High colour fastness (CRI90)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

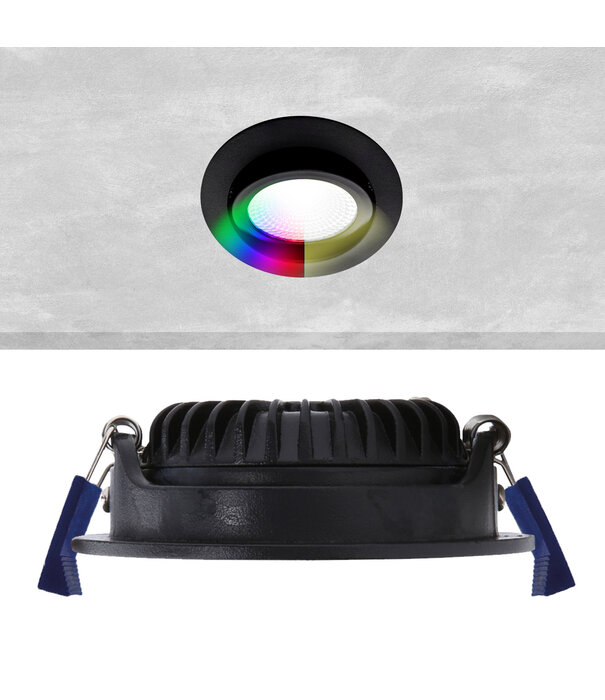

Key features of this black, round LED recessed spotlight are its IP54 value (splash-proof), its small recessed depth (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector, which makes it easy and safe to realise a parallel connection. Excellent dimmability with all EcoDim LED dimmers.

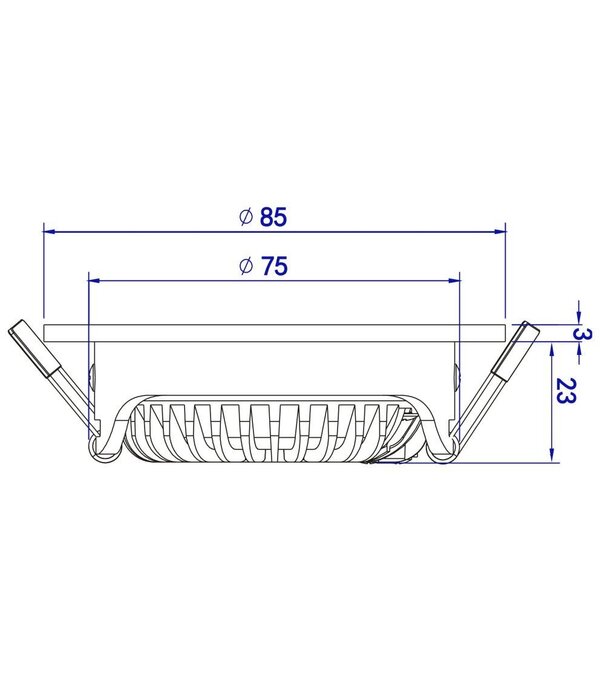

Cutting size: Ø75mm
Outer edge: Ø85mm

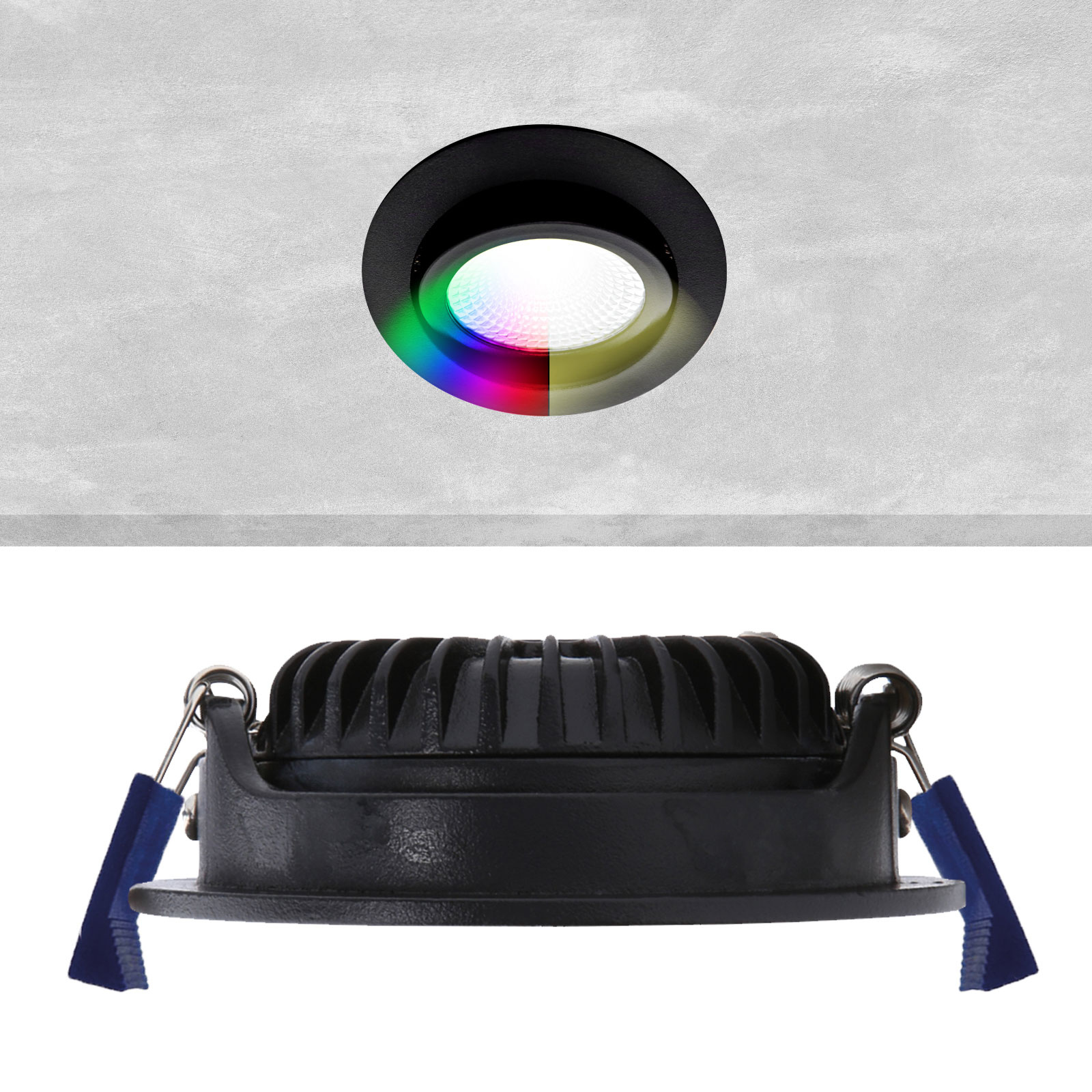

Recessed depth: 23mm

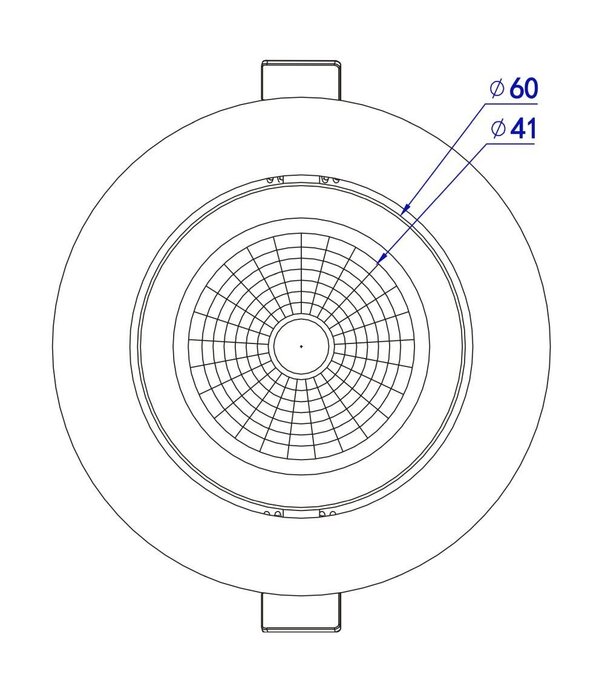

Spot light source: Ø45mm
Spot incl. tilting ring: Ø60mm

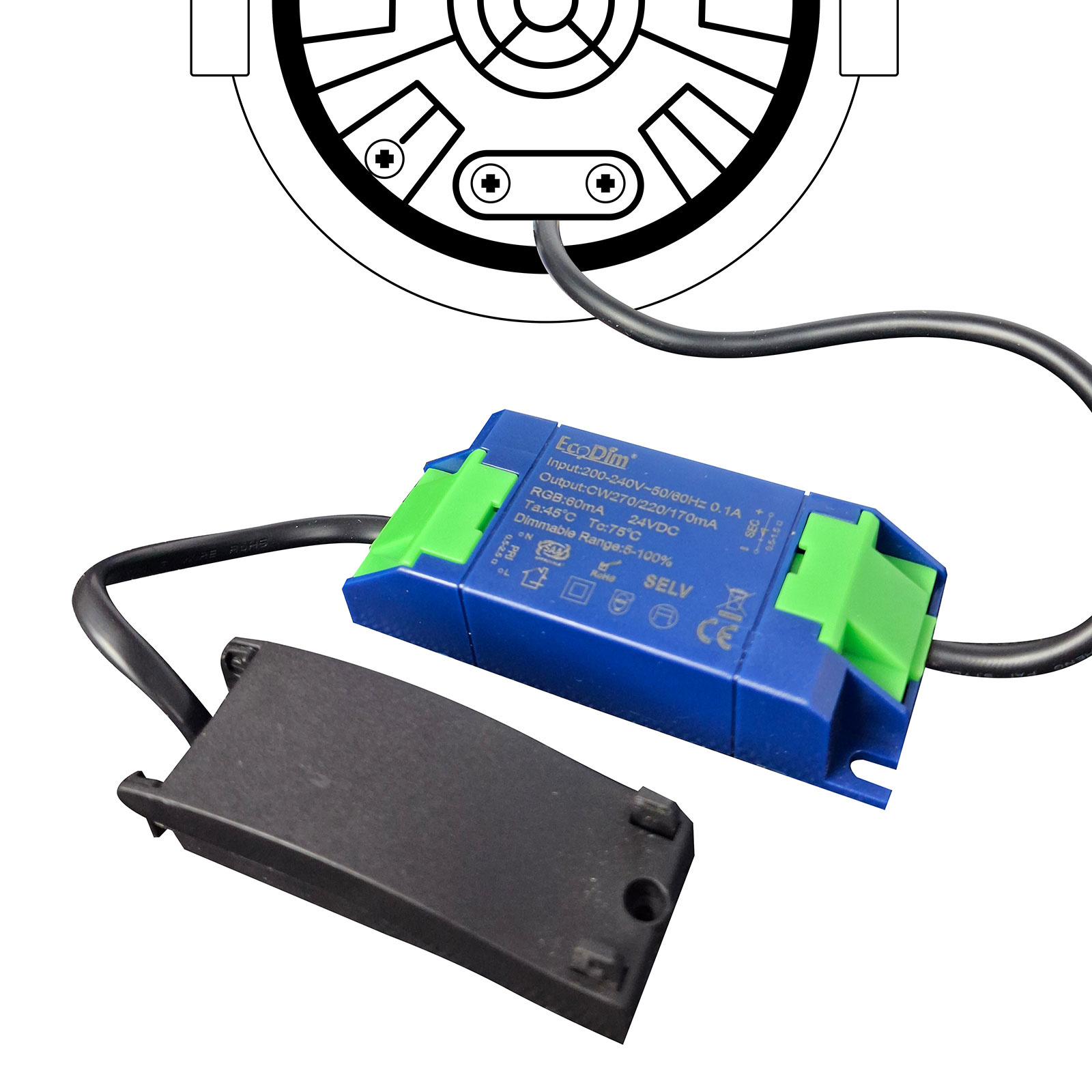

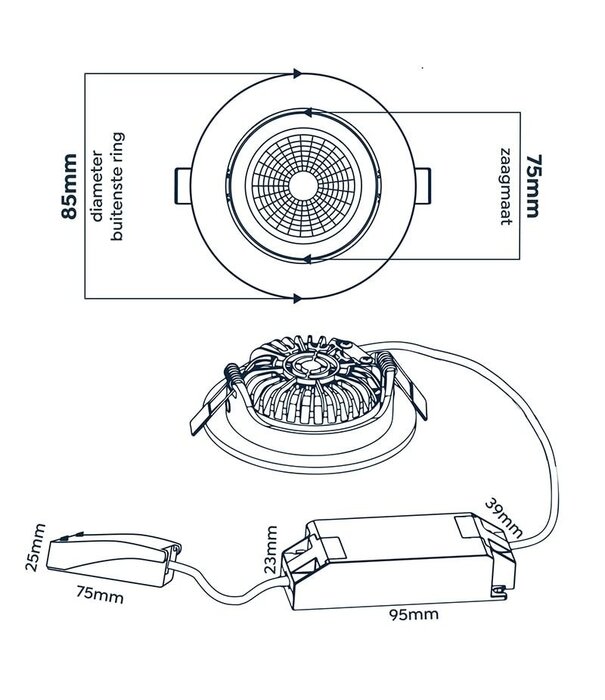

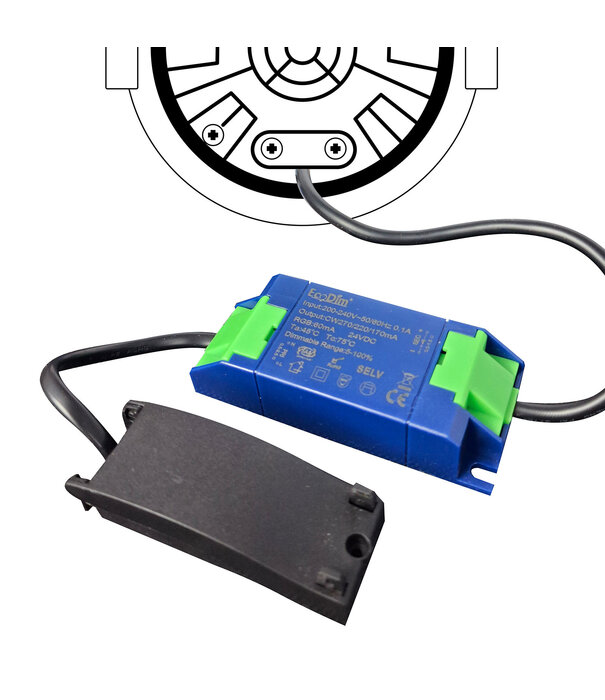

Supplied LED transformer:
Length: 96 mm
Width: 39 mm
Depth: 23 mm

Input 220-240VAC / Output 14-25VDC
Can be connected directly to 230V.

General information

Wattage: 6W
Lumen: 450 lumens
CRI: >90
Light angle: 60⁰
Voltage: 230V
Dimmable: Yes, via home automation system, Zigbee remote control or Zigbee wall switch
Lifespan: 25,000 hours
Frequency: 2.4 GHz, 868/915 MHz

Suitable home automation systems

• Google Home/Nest (via a Zigbee Hub)
• Amazon Alexa
• Philips Hue
• Homey
• KlikAanKlikUit
• Lidl smarthome
• Futurehome
• Aduro Smart
• Samsung SmartThings
