Small mounting depth (23 mm).
IP54 (splash-proof, suitable for bathrooms)
Dimmable up to 5%
✓ Warm white (2700K)
✓ Brushed nickel, round
Tiltable
✓ Good light distribution (60⁰)
COB chip & Reflective Technology
High colour fastness (CRI95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

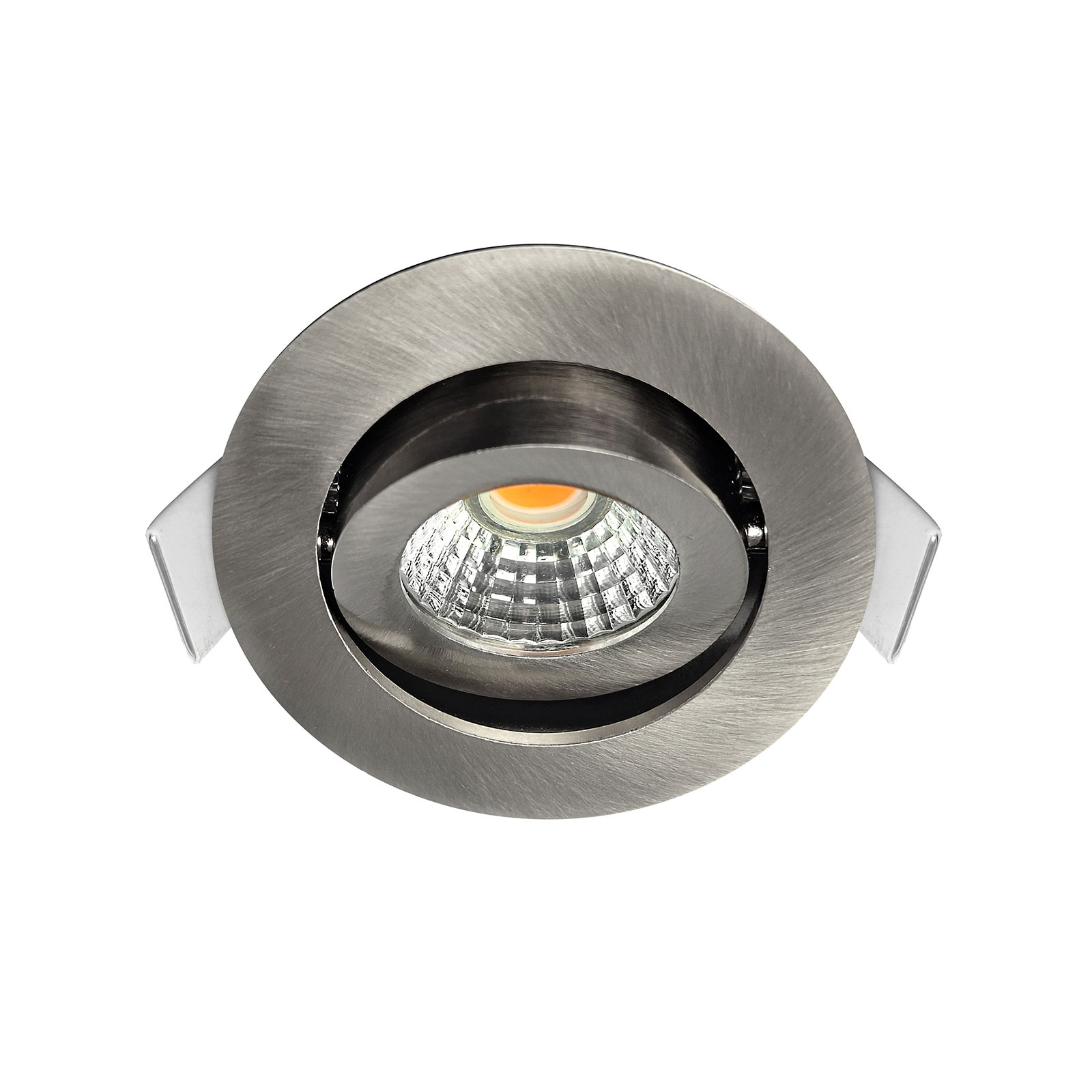

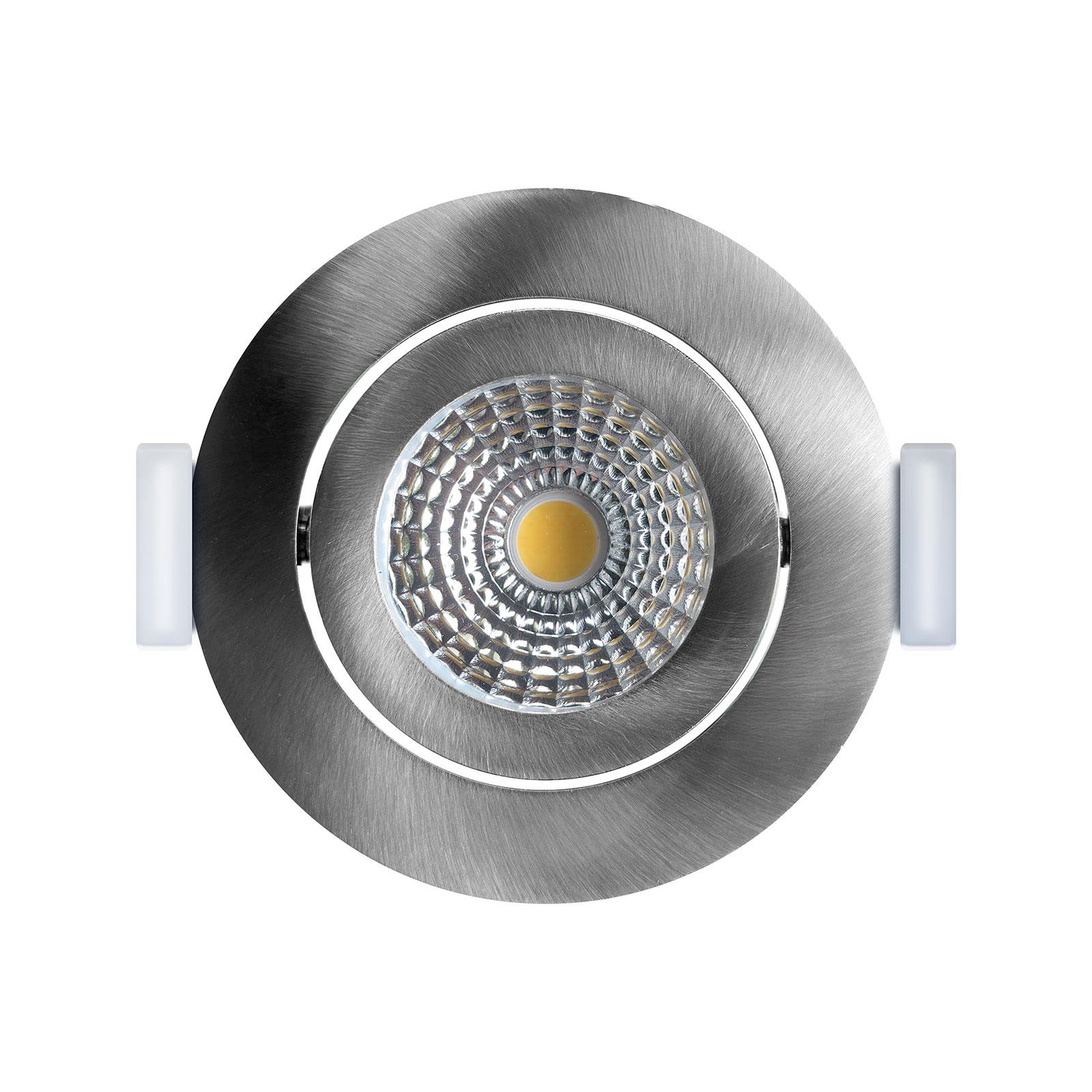

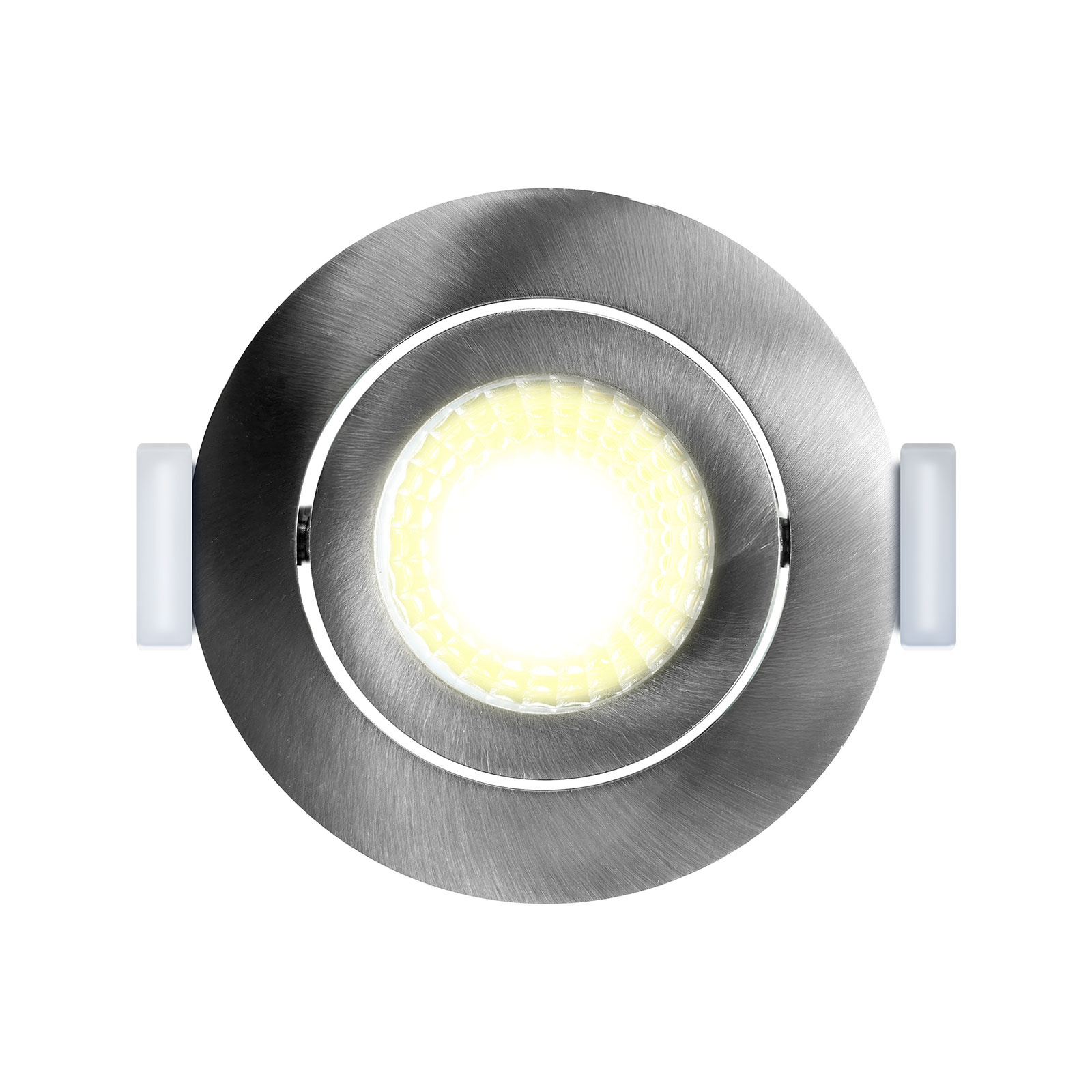

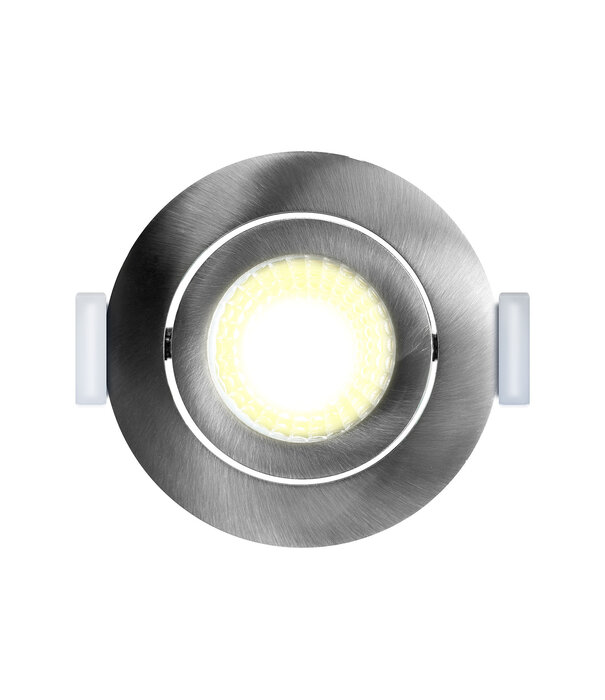

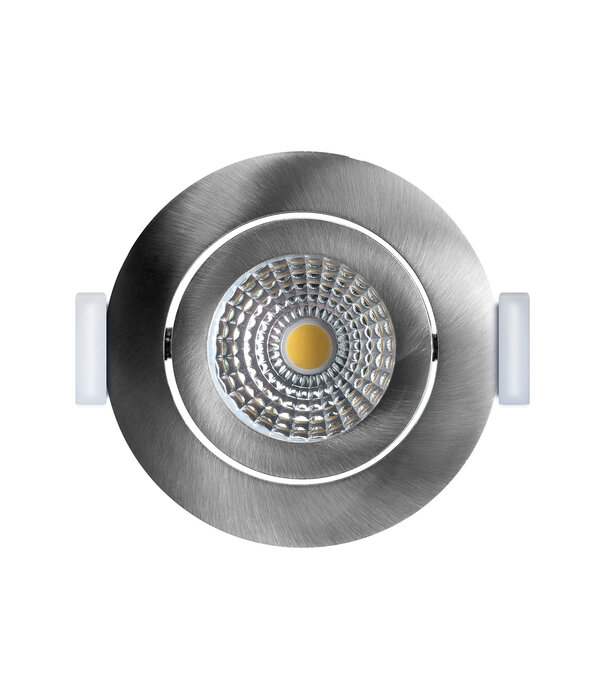

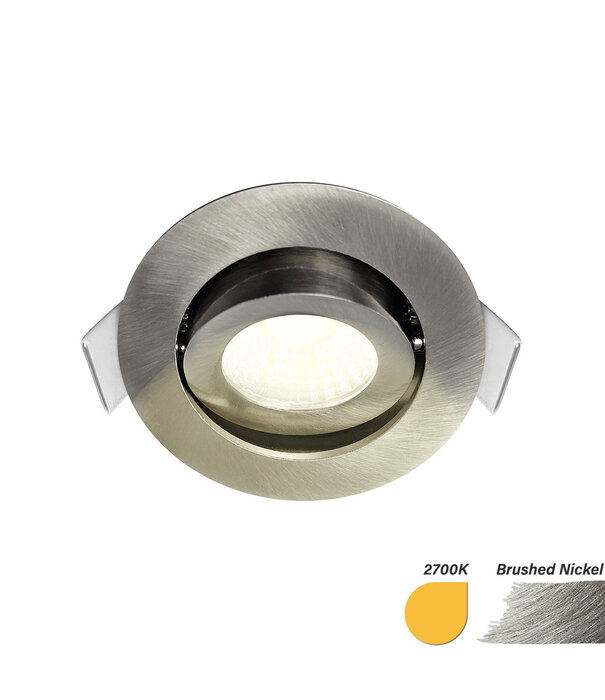

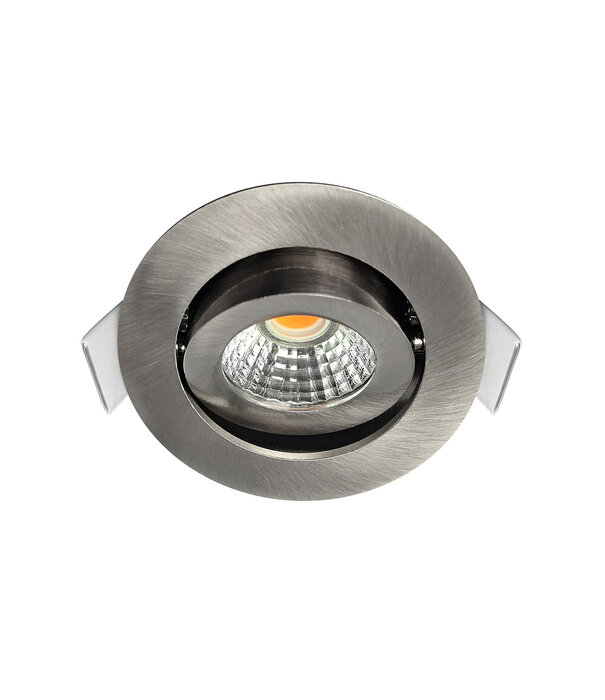

Key features of this nickel-coloured round LED recessed spotlight are its IP54 value (splash-proof), its small recessed depth (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector, making it easy and safe to realise a parallel connection. Excellent dimmability with all EcoDim LED dimmers.
Cutting size: Ø55mm
Outer edge: Ø62mm

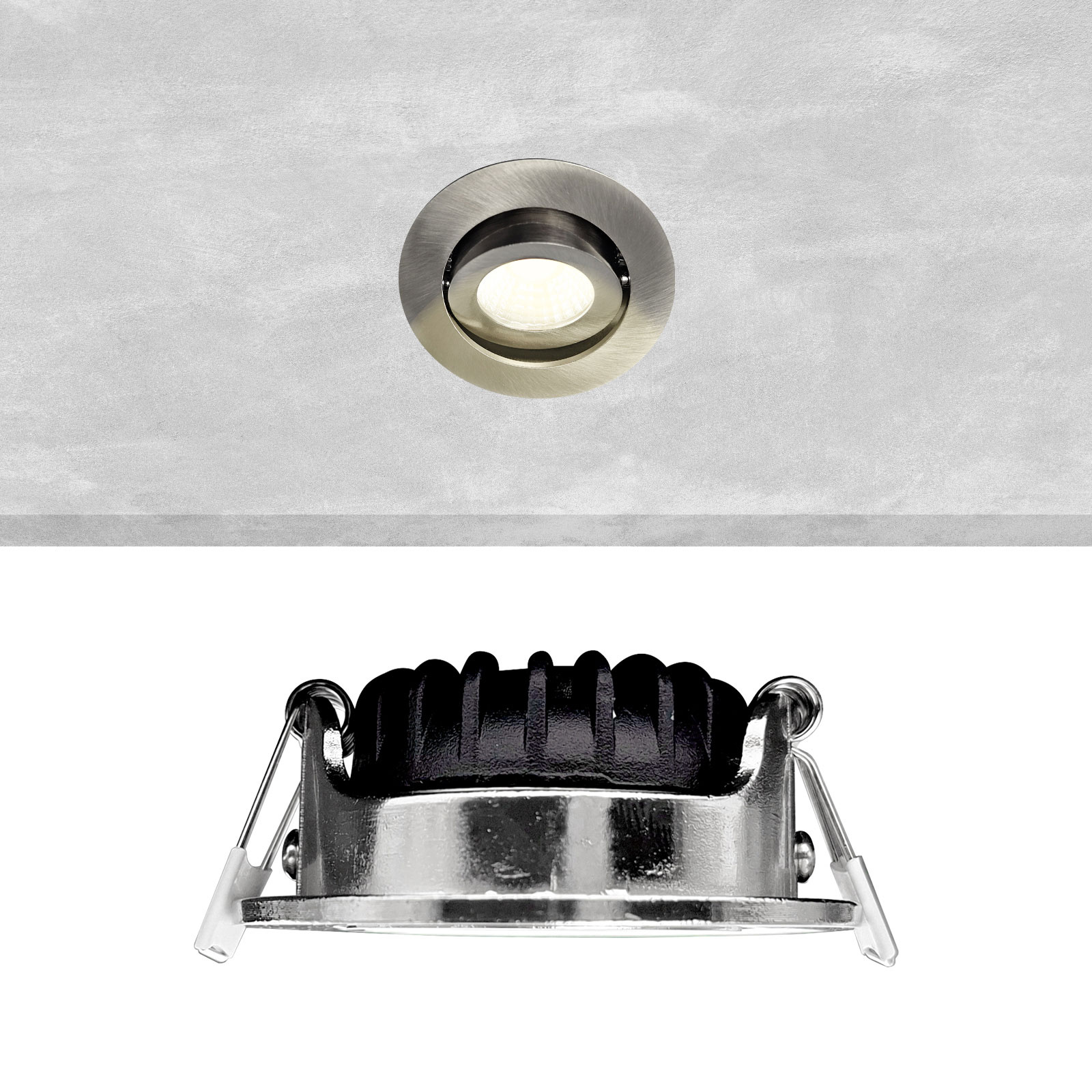

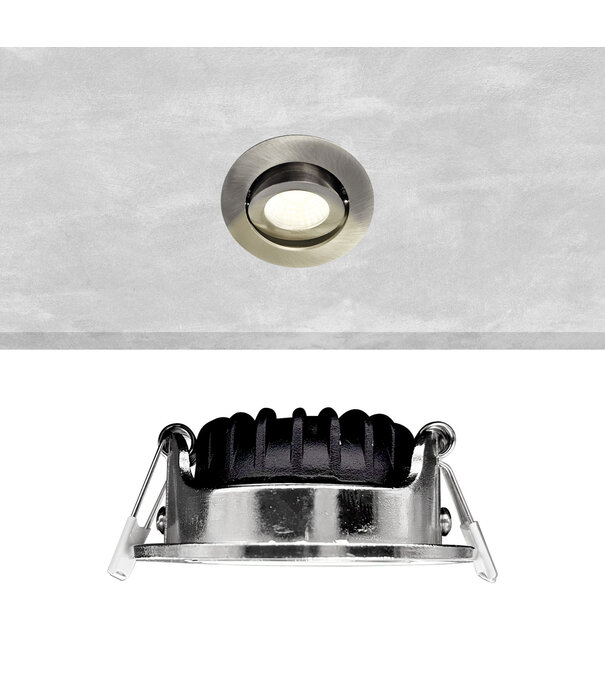

Recessed depth: 23mm
Spot light source: Ø25mm
Spot incl. tilting ring: Ø40mm

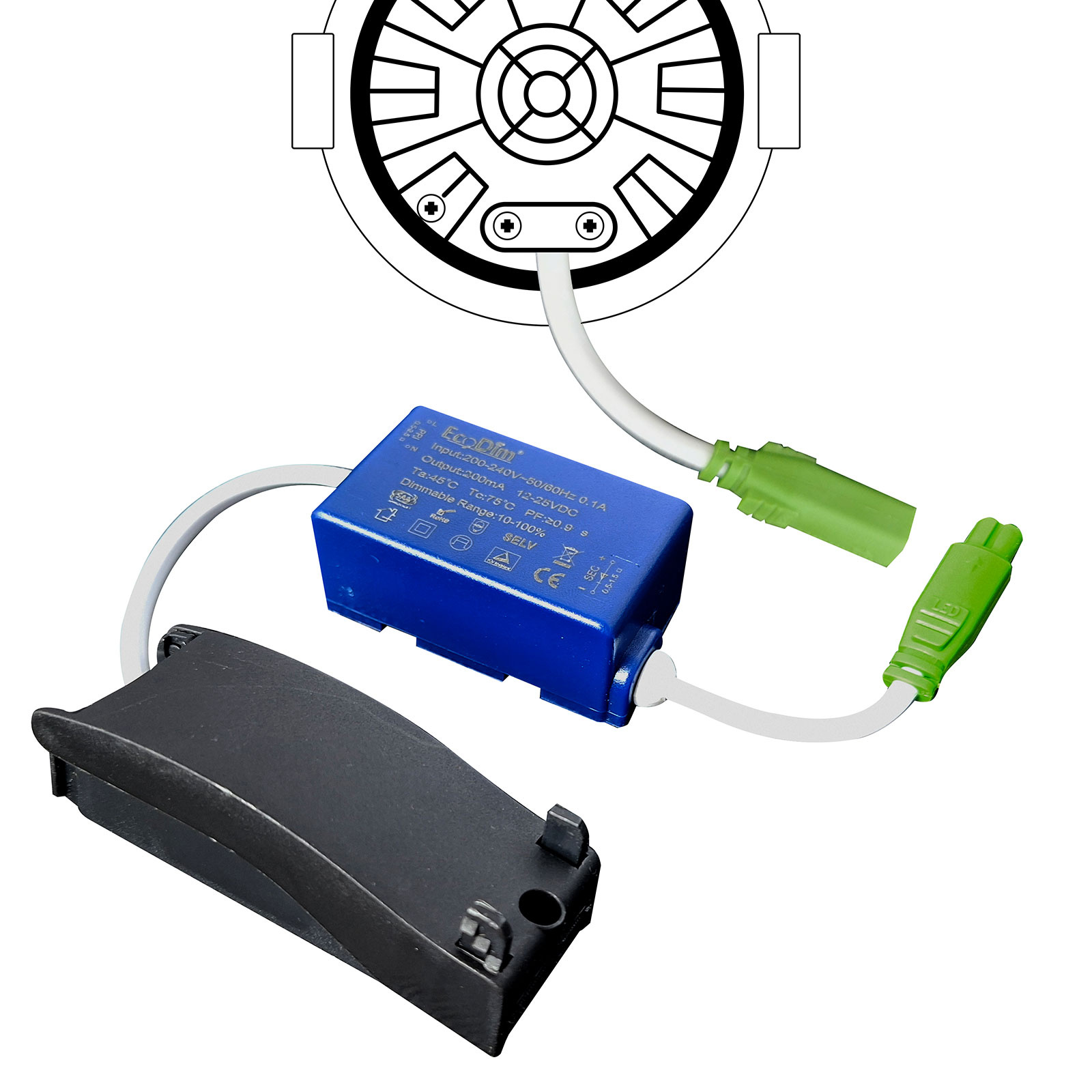

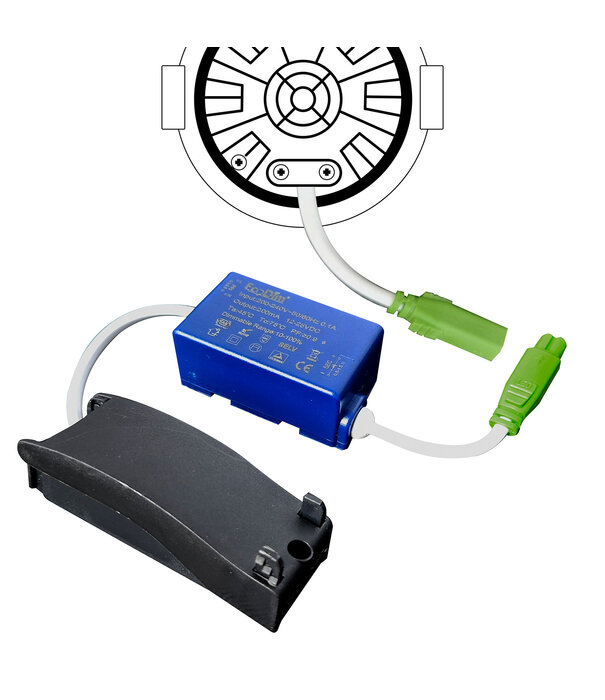

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm
Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.
| Brand: | EcoDim |
| Power (wattage): | 5 watts |
| Voltage (input): | 220 - 240V |
| Dimming technology: | Phase cut-off / RC / Tronic |
| Operation: | N/A |
| Dimensions in mm (outer dimensions frame): | N/A |
| Installation dimensions in mm (fits any flush-mounted box): | N/A |
| Packaging: | Each |
| Warranty: | 2 years |
| Article number: | ED-10063 |
| Item number 2BA: | ED-10063 |
| Download manual: | https://cdn.webshopapp.com/shops/68389/files/424062893/ed-10058-ed-10063-manual.pdf |
