Small mounting depth (23 mm)
IP54 (splash-proof, suitable for bathrooms)
✓ Dimmable up to 5%

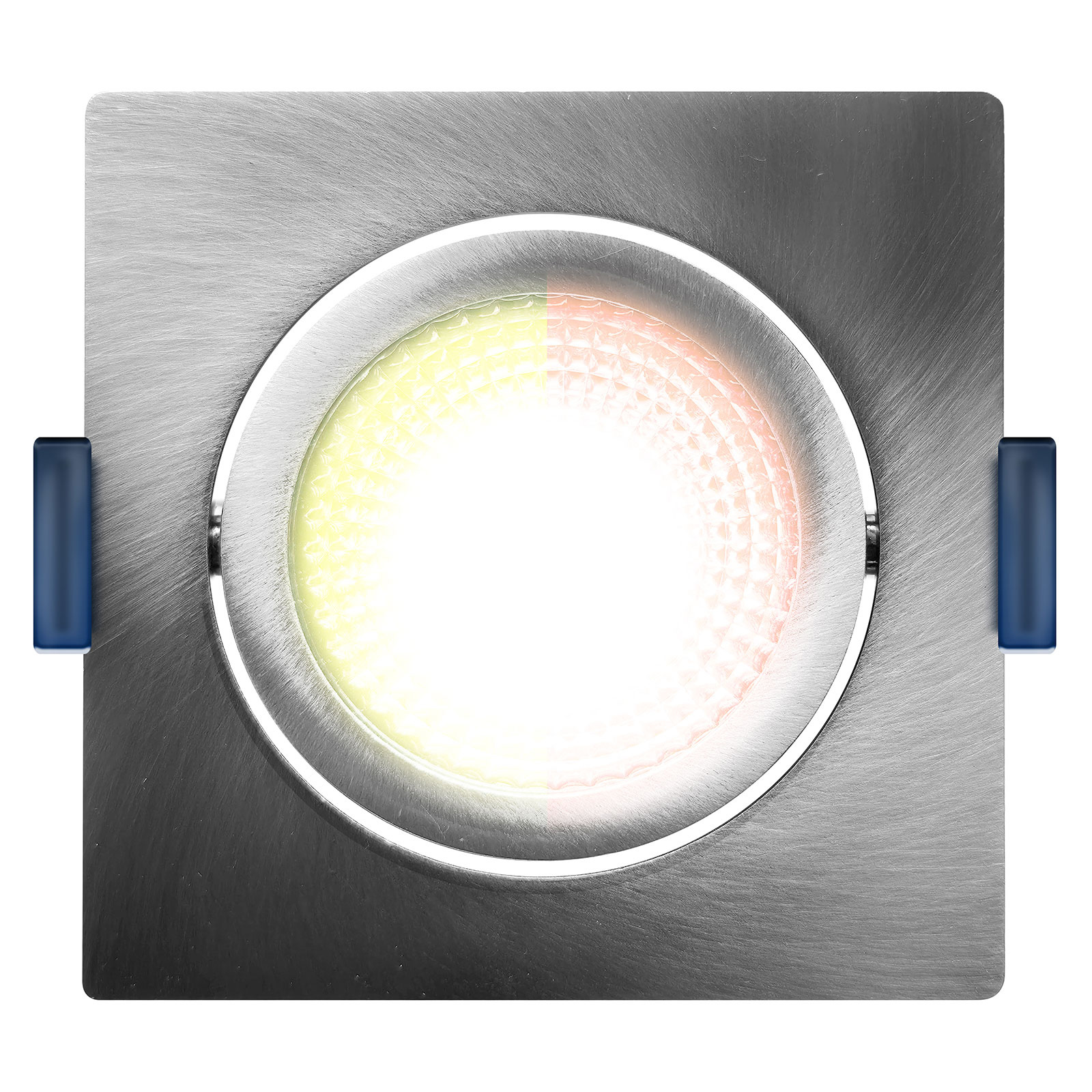

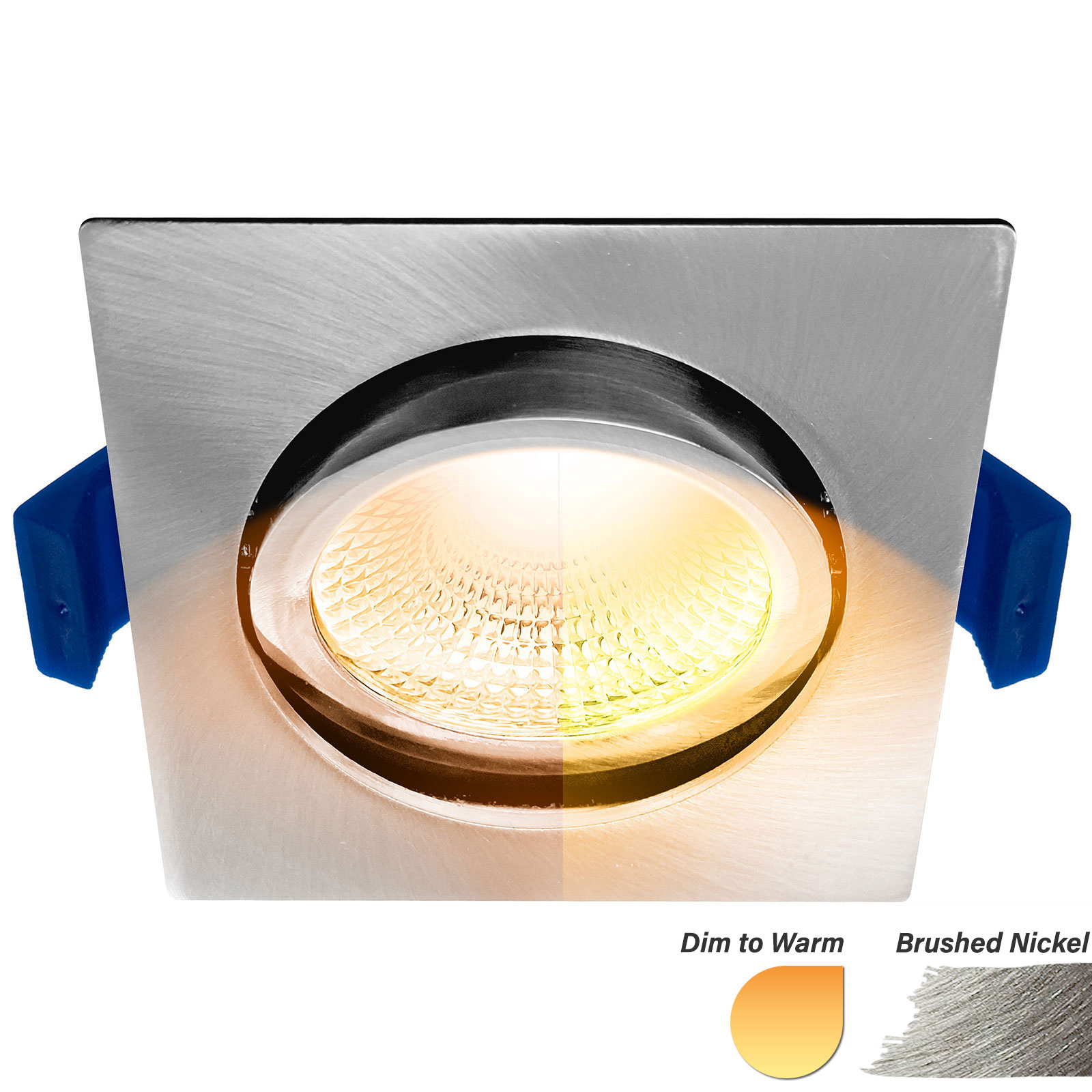

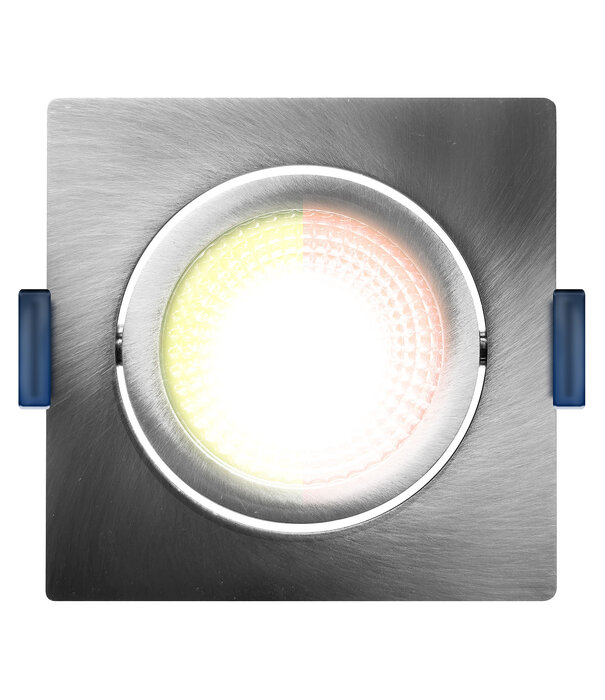

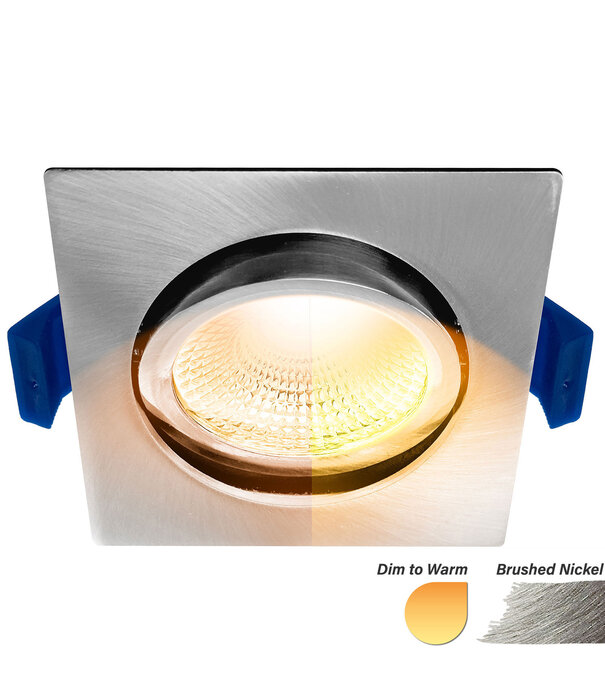

✓ Dim to warm (2000K-3000K)
Brushed nickel, square

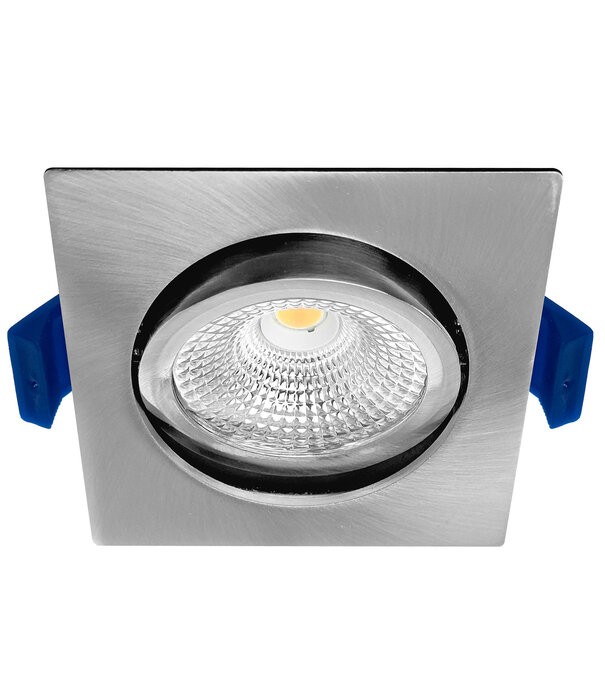

Tiltable
✓ Good light distribution (60⁰)

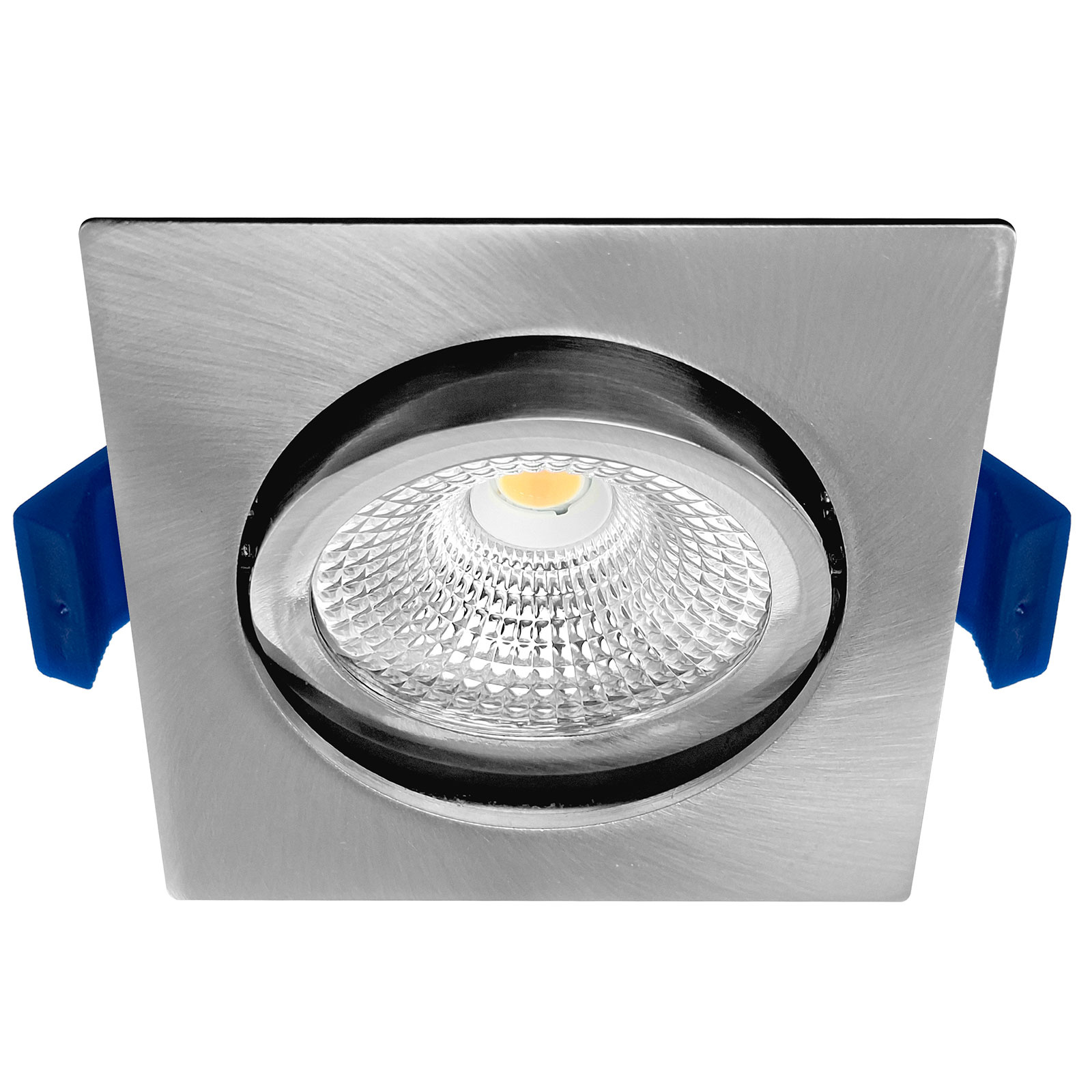

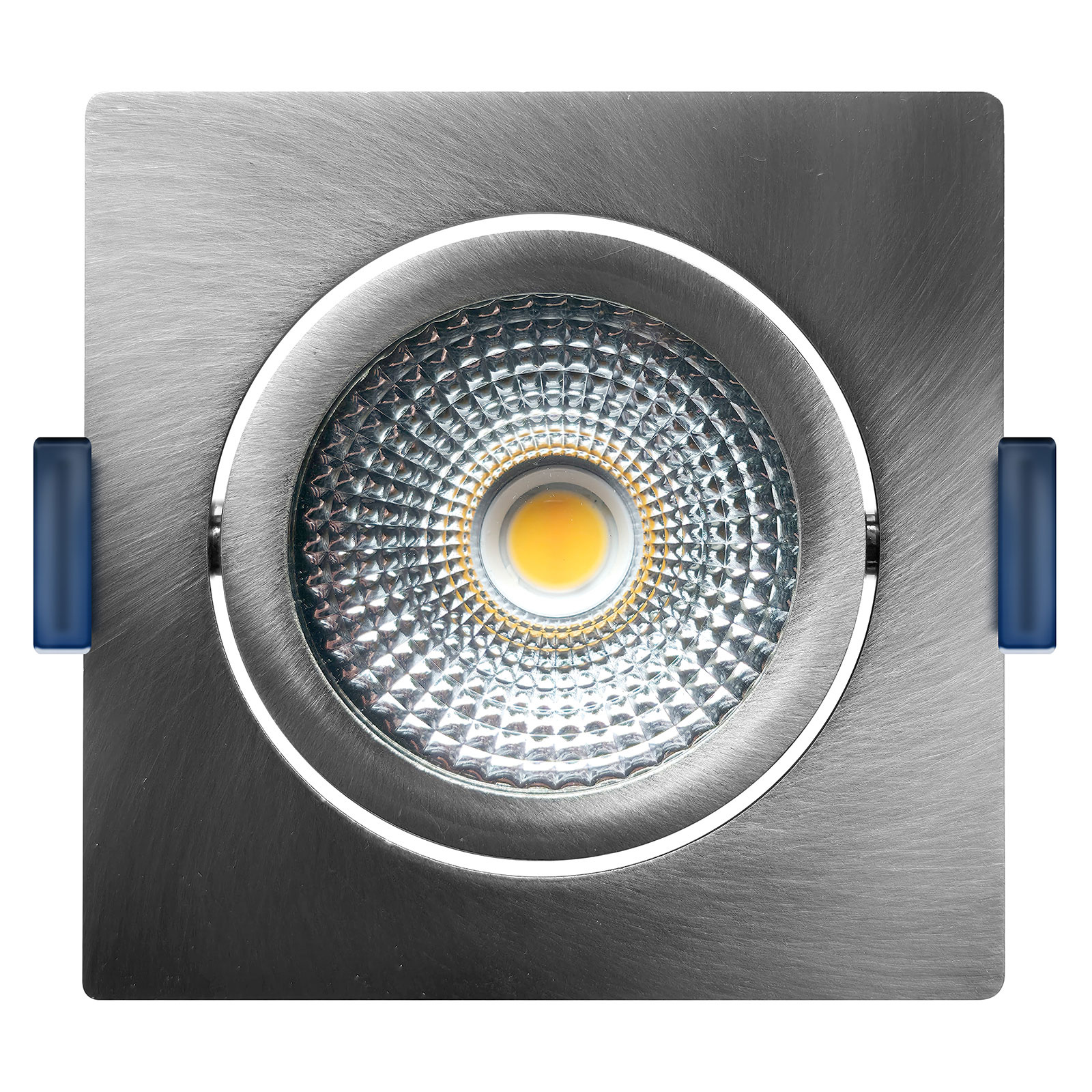

COB chip & Reflective Technology
✓ High colour fastness (CRI≥95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

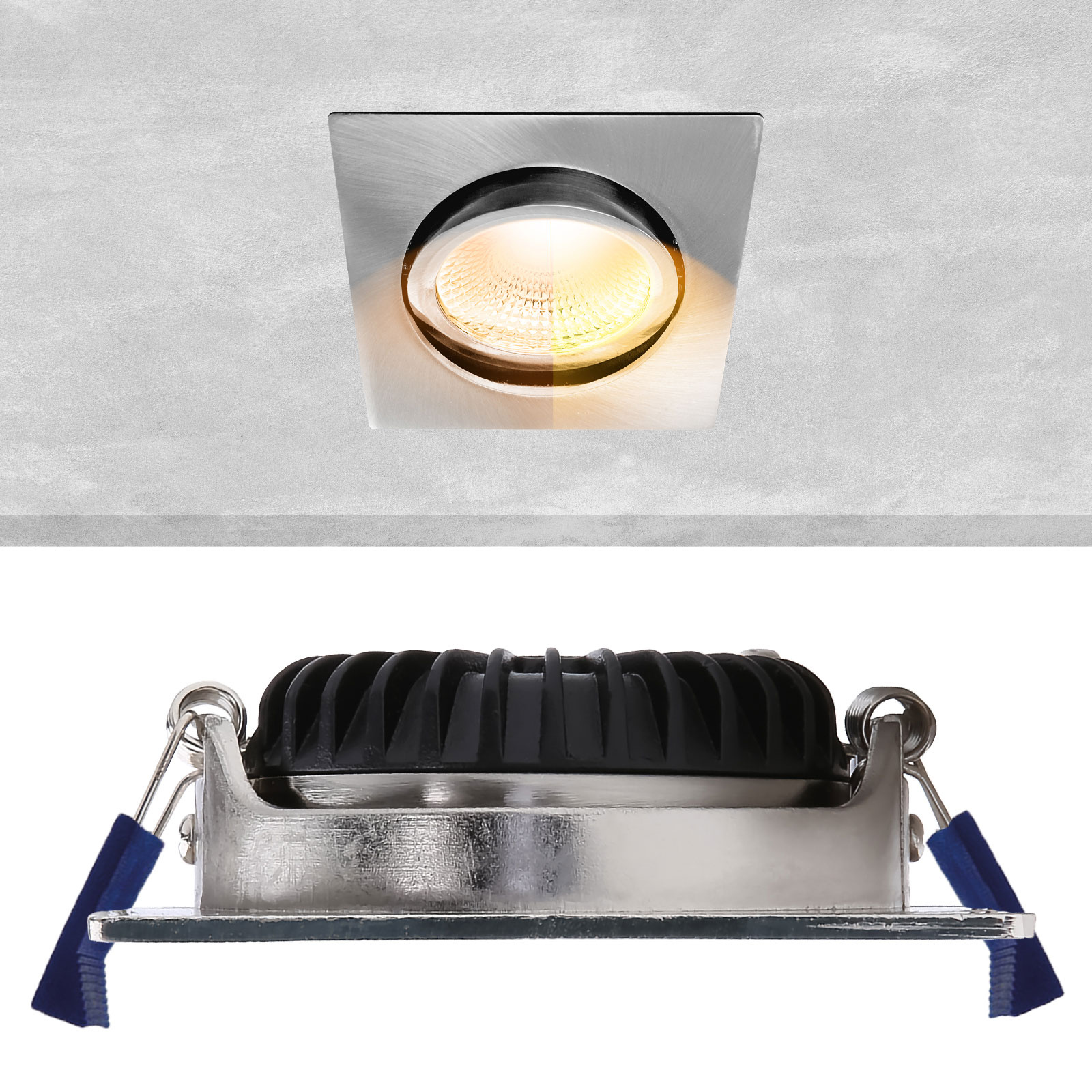

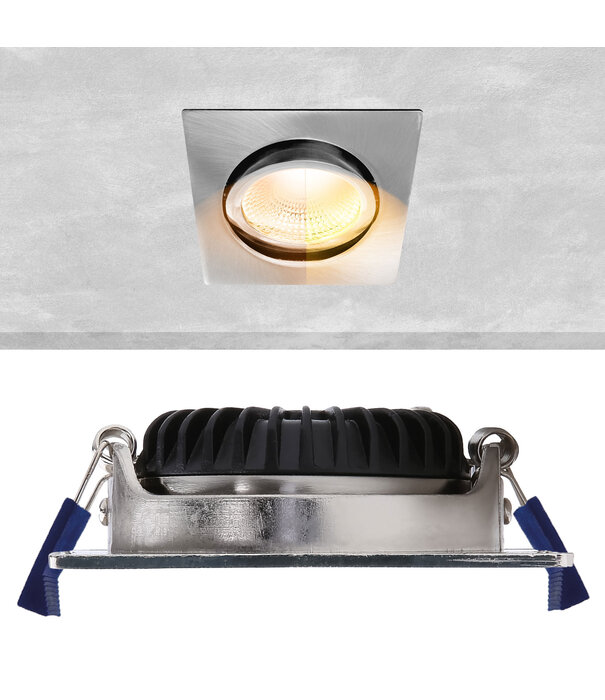

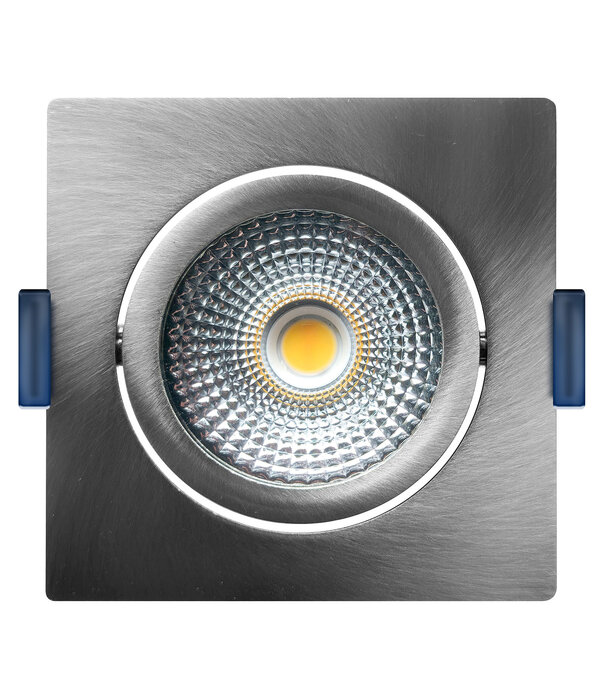

This square nickel LED recessed spot is splash-proof (IP54, suitable for bathroom) and a small recessed depth of only 23mm. Unique is its excellent dimmability and easy 2-wire looping thanks to the compact junction box with double clamp connector (2x phase and 2x zero wire). A special feature is the 'dim to warm' light colour. This makes the light colour 'warmer' as you dim, i.e. from 3000K-2000K.

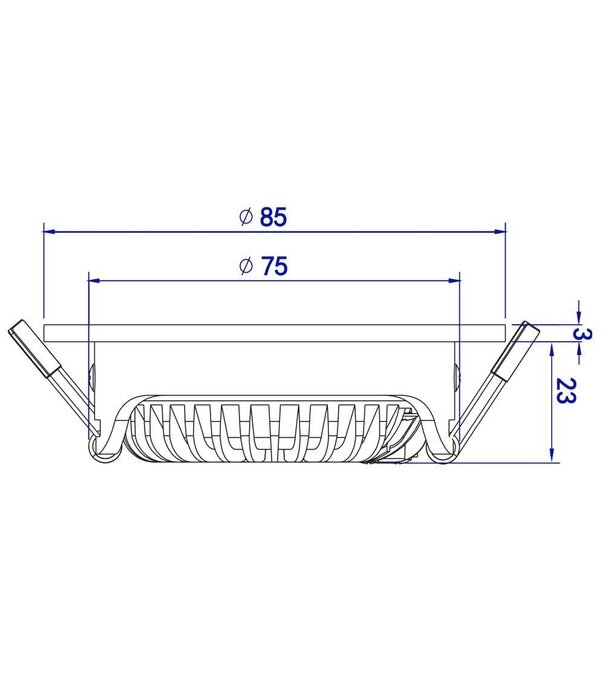

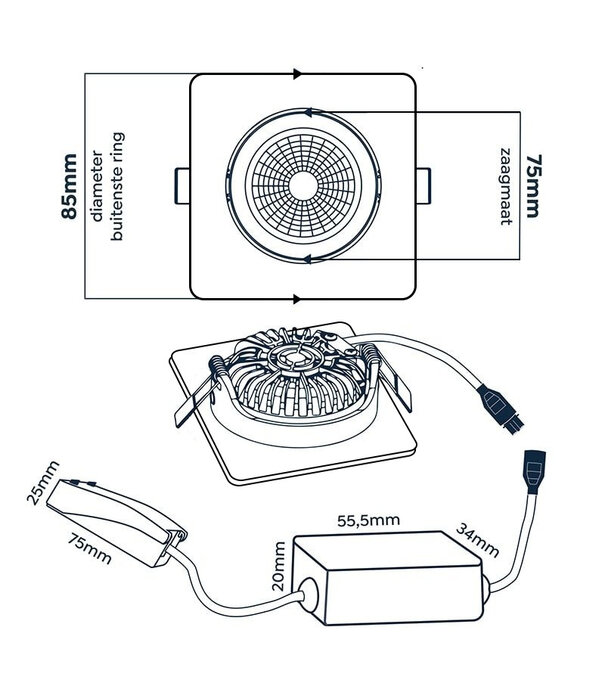

Cutting size: Ø75mm
Outer edge: Ø85mm
Recessed depth: 23mm

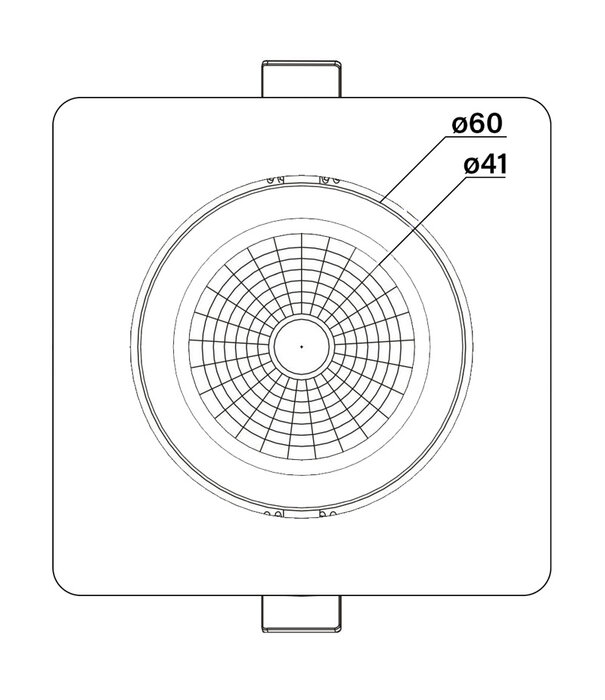

Spot light source: Ø45mm
Spot incl. tilting ring: Ø60mm

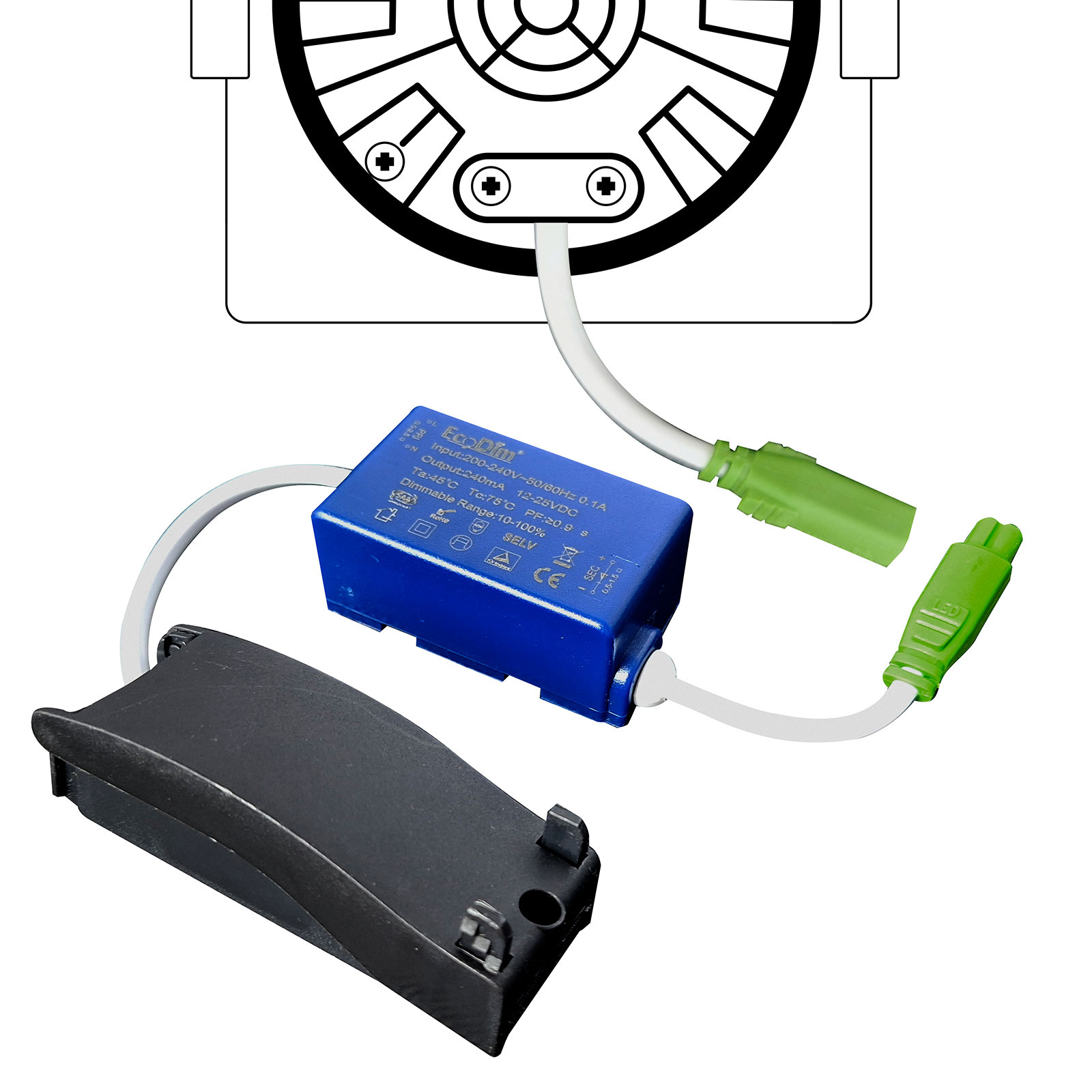

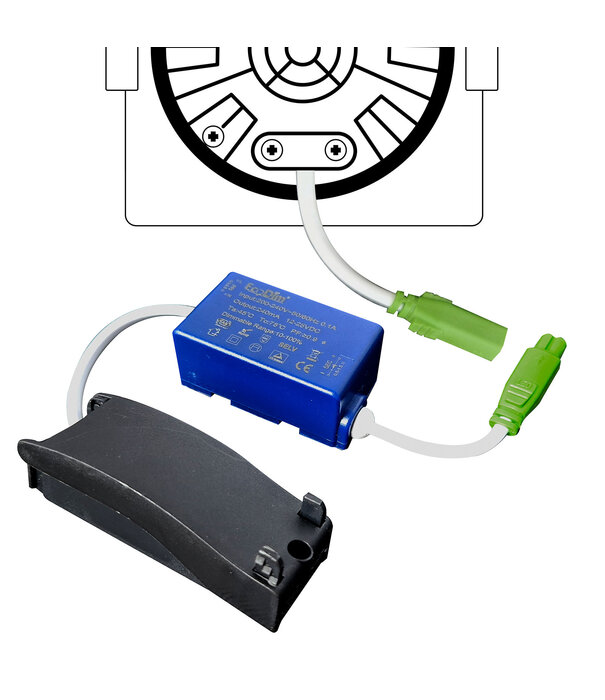

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm
Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.
| Brand: | EcoDim |
| Power (wattage): | 5 watts |
| Voltage (input): | 220 - 240V |
| Dimming technology: | Phase cut-off / RC / Tronic |
| Operation: | N/A |
| Dimensions in mm (outer dimensions frame): | N/A |
| Installation dimensions in mm (fits any flush-mounted box): | N/A |
| Packaging: | Each |
| Warranty: | 2 years |
| Article number: | ED-10027 |
| Item number 2BA: | ED-10027 |
| Download manual: | https://cdn.webshopapp.com/shops/68389/files/389156933/20210430-handleiding-a4-ondiepe-inbouwspots.pdf |
| Philips HUE manual: |
