Small mounting depth (23 mm).
IP54 (splash-proof, suitable for bathrooms)
Dimmable up to 5%

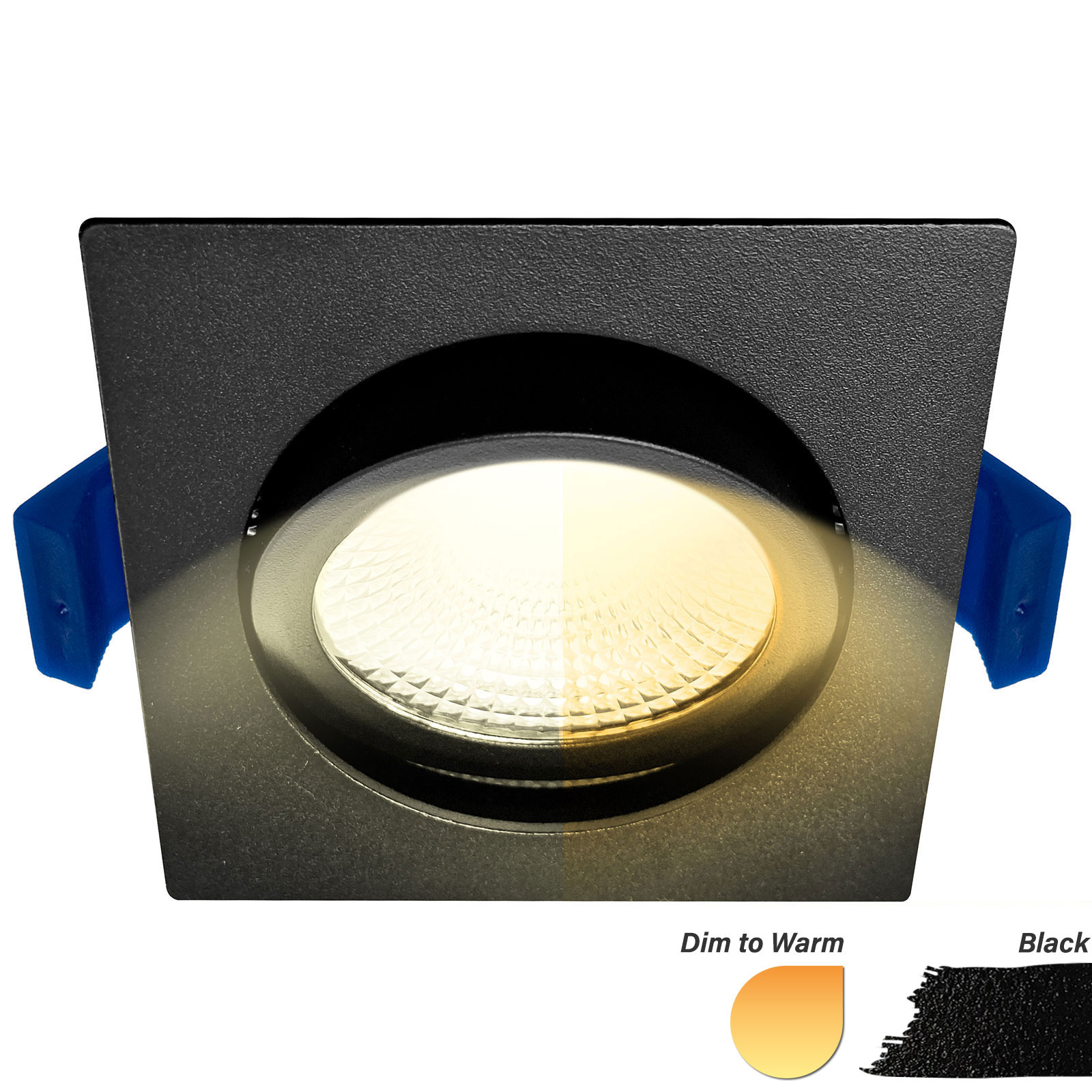

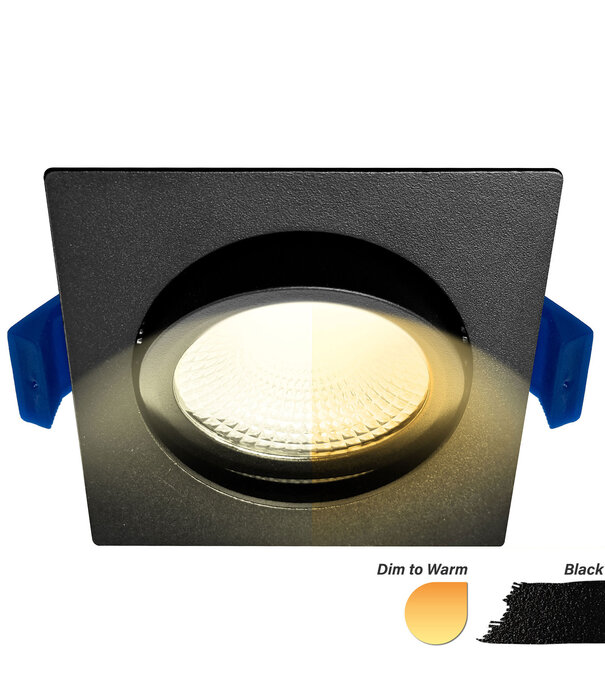

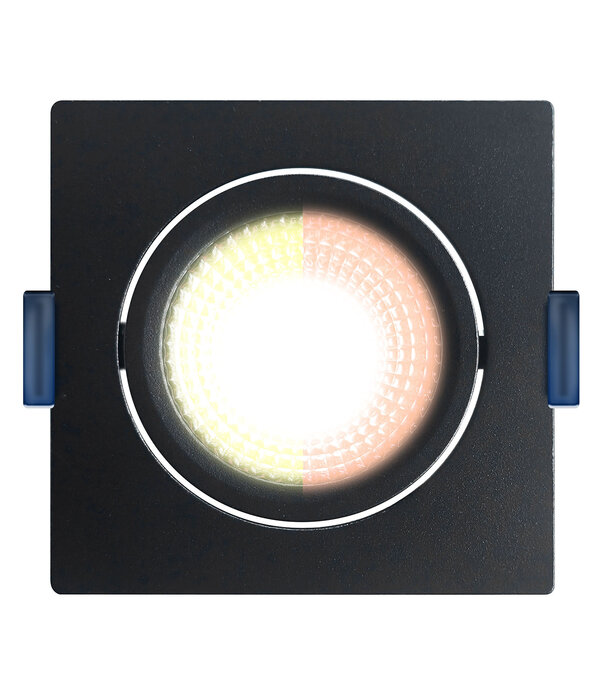

✓ Dim to warm (2000K-3000K)

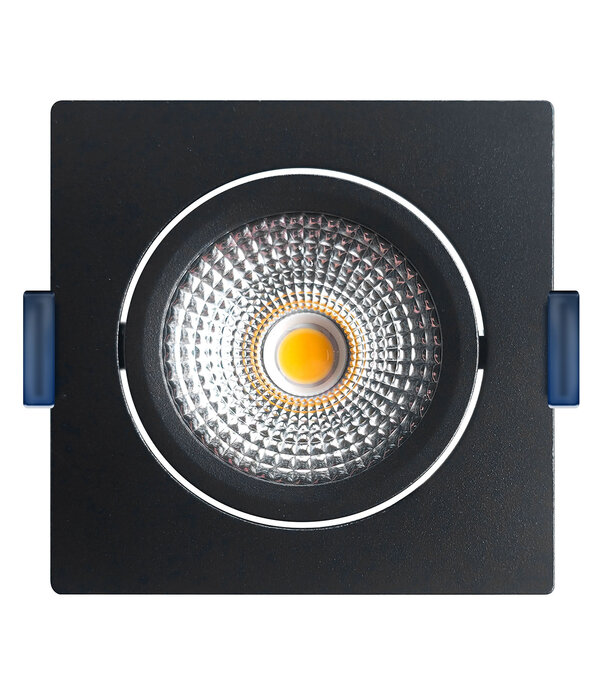

✓ Matt black, square

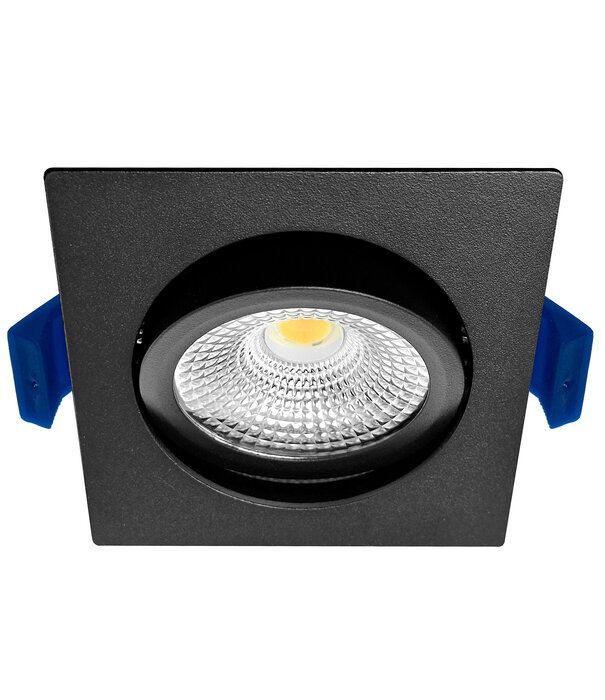

Tiltable
✓ Good light distribution (60⁰)
COB chip & Reflective Technology
✓ High colour fastness (CRI≥95)
✓ Transformer included (can be connected to 230V)
✓ Simple & safe 2-wire daisy-chaining
✓ 90% savings

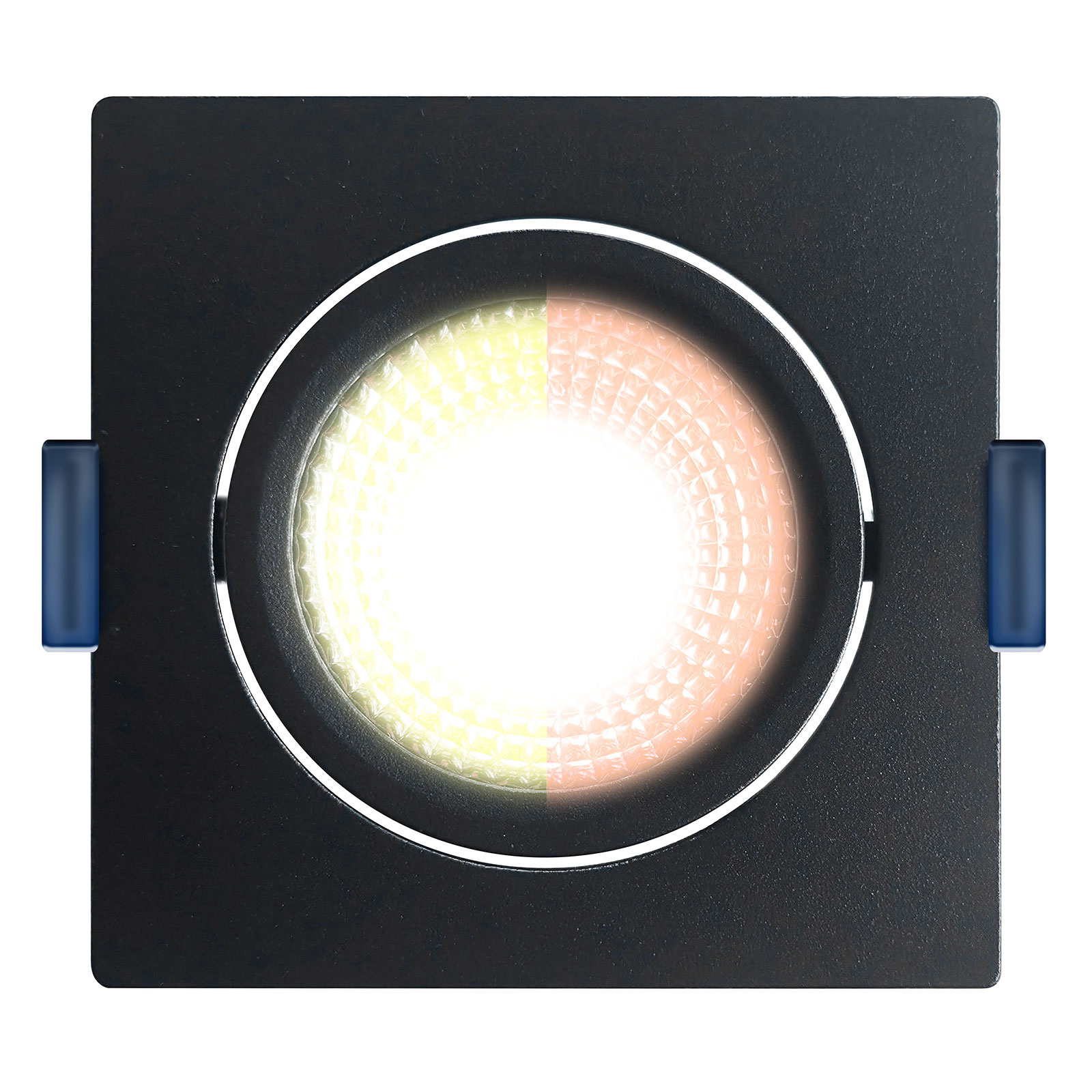

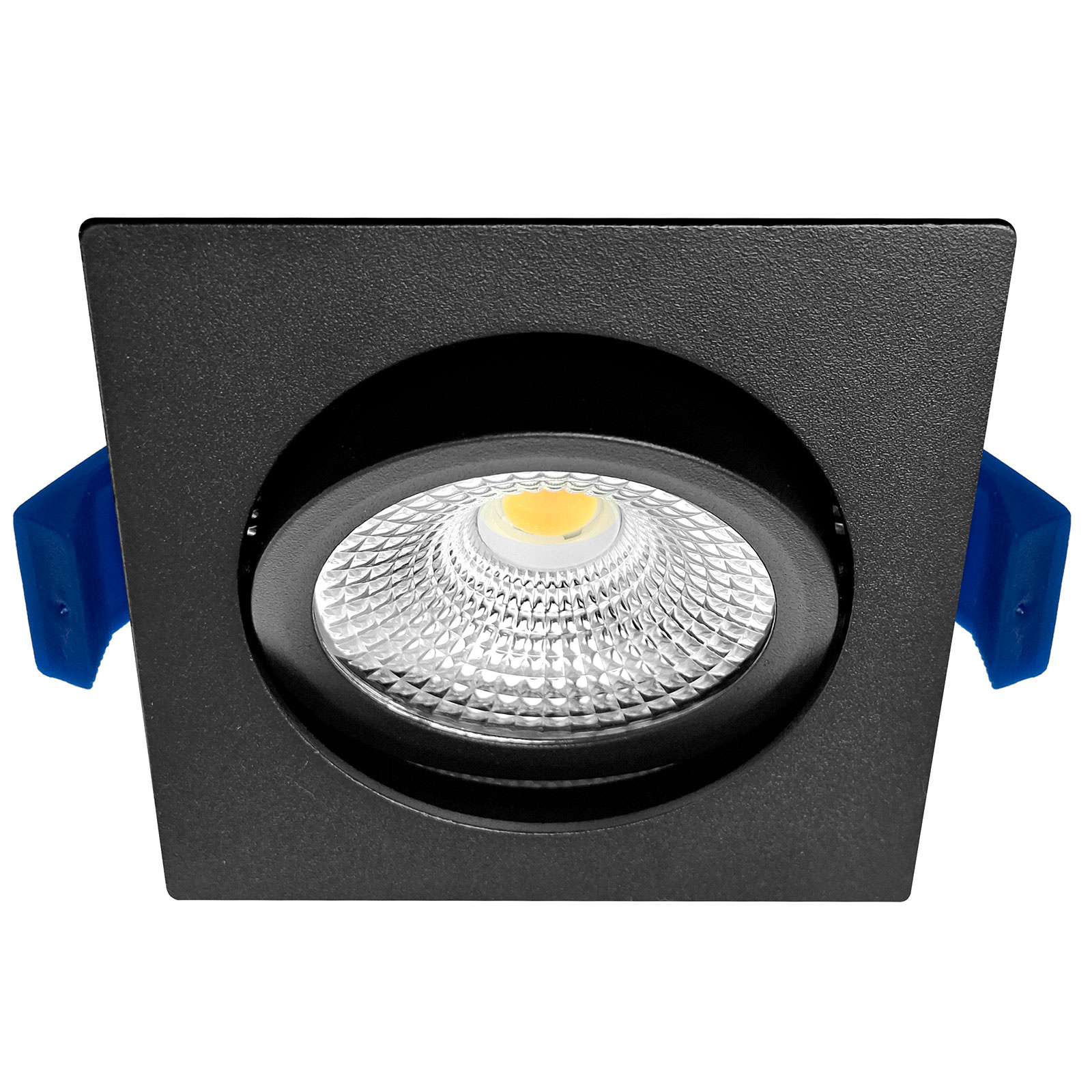

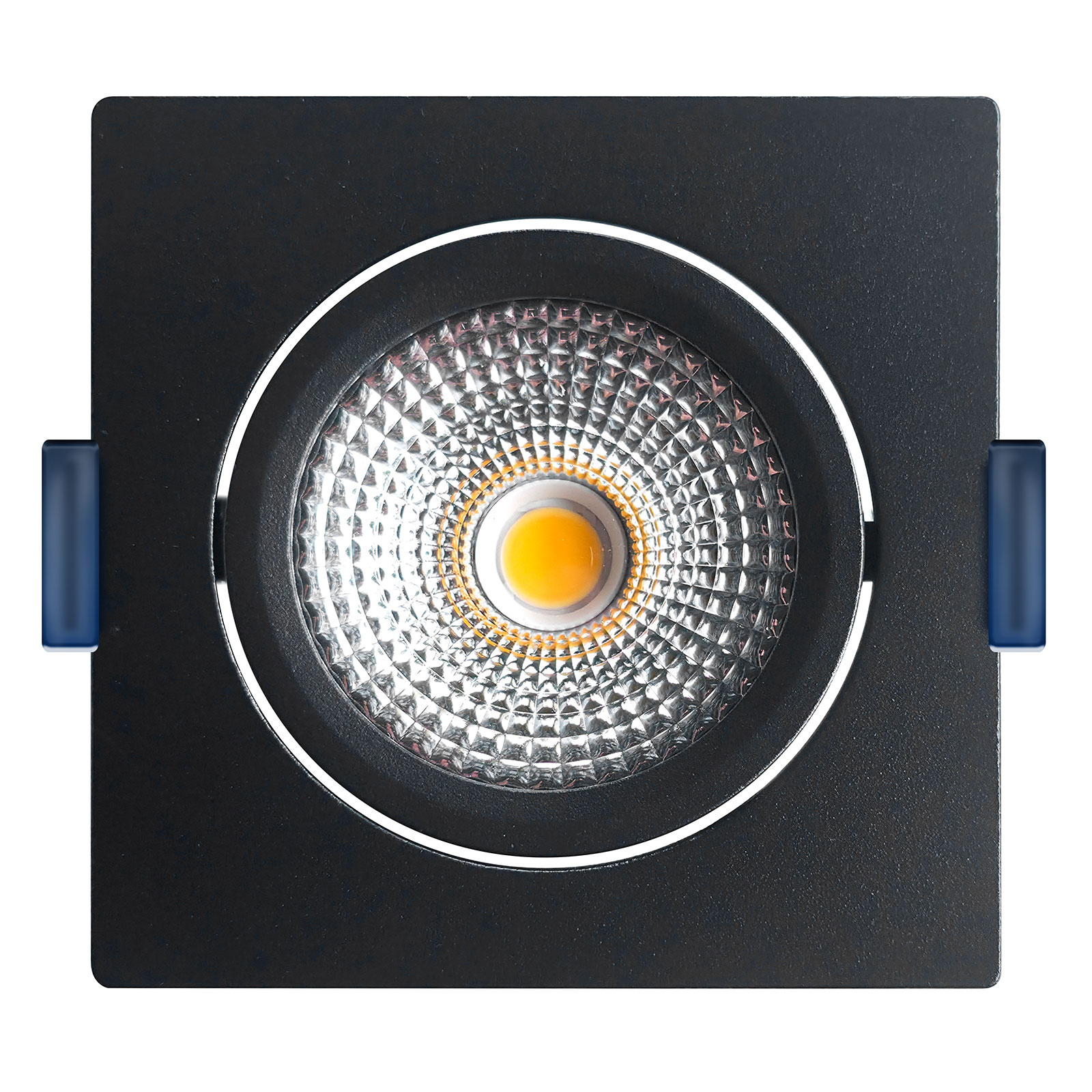

Key features of this square black LED recessed spotlight are its IP54 value (splash-proof), its small recessed depth (23 mm) and its excellent dimmability. Unique is the compact junction box with double clamp connector (2x phase and 2x neutral) for safe and easy parallel connection. Excellent dimmability with all EcoDim LED dimmers.

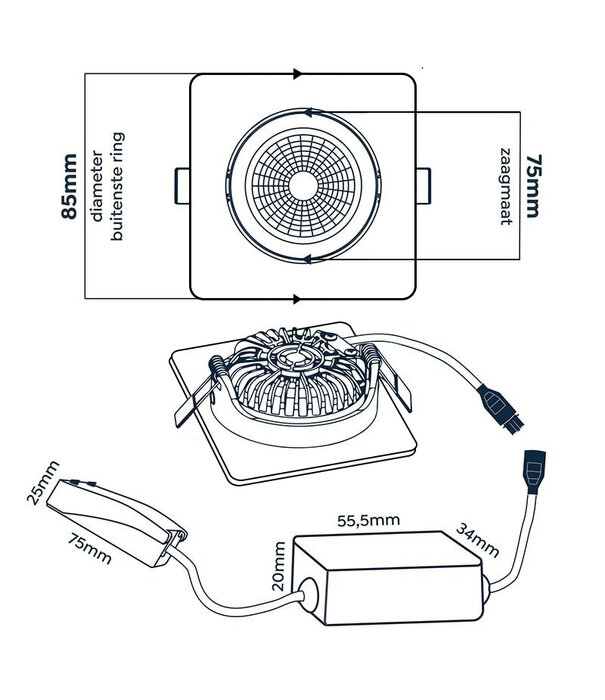

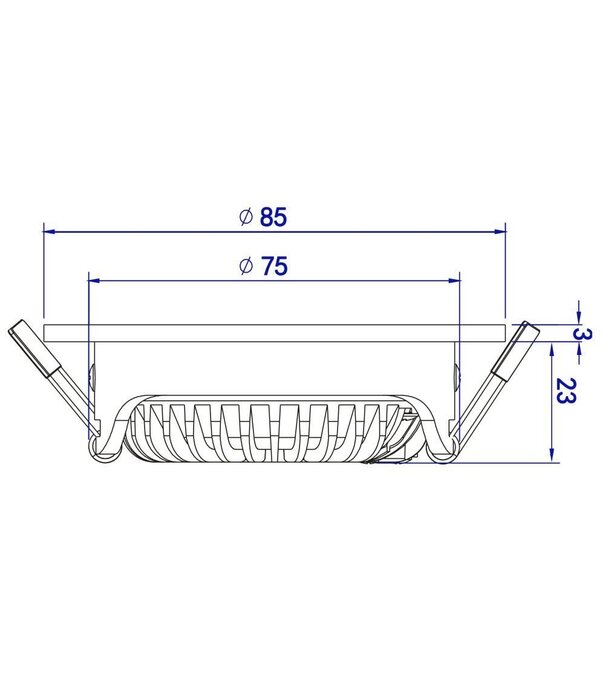

Cutting size: Ø75mm
Outer edge: Ø85mm

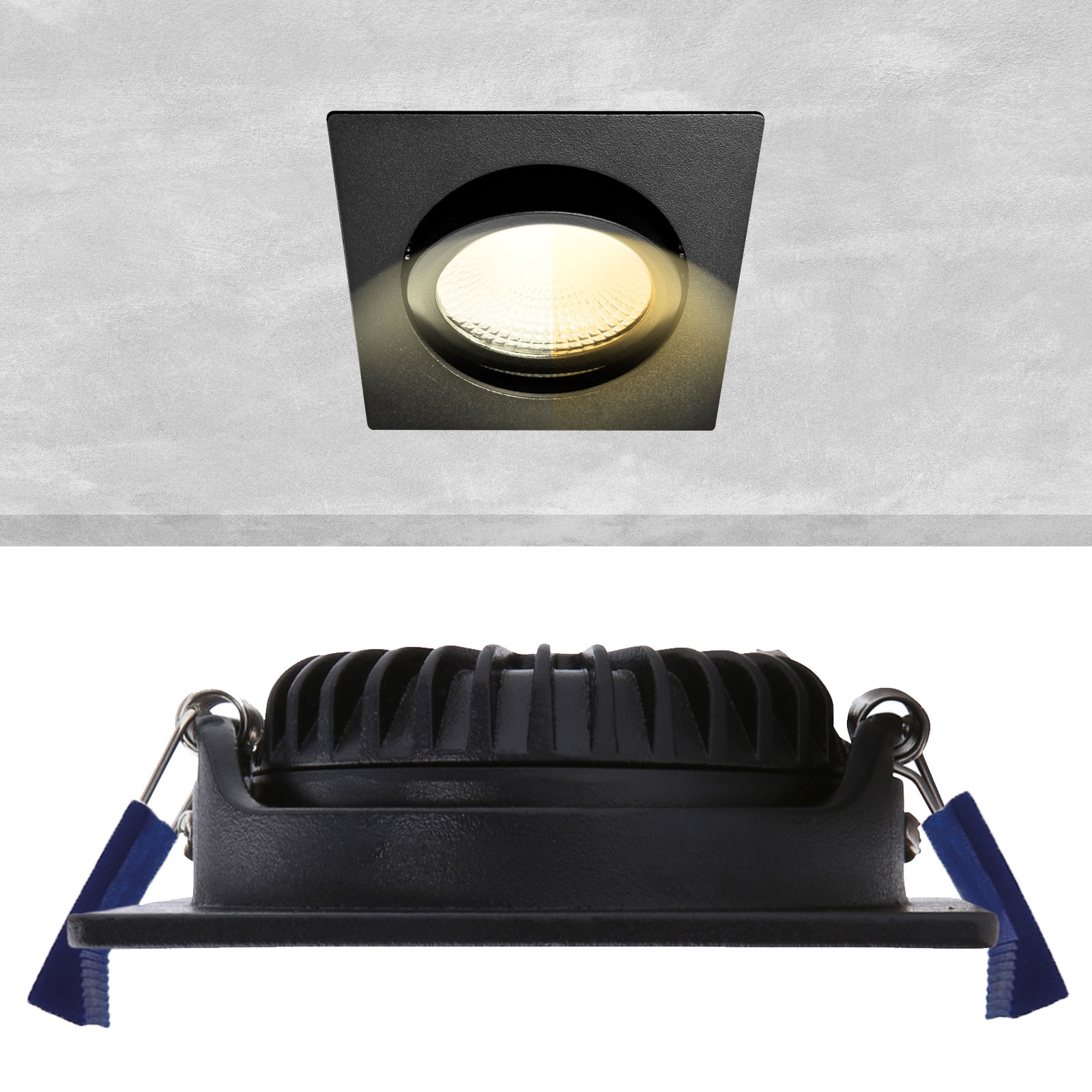

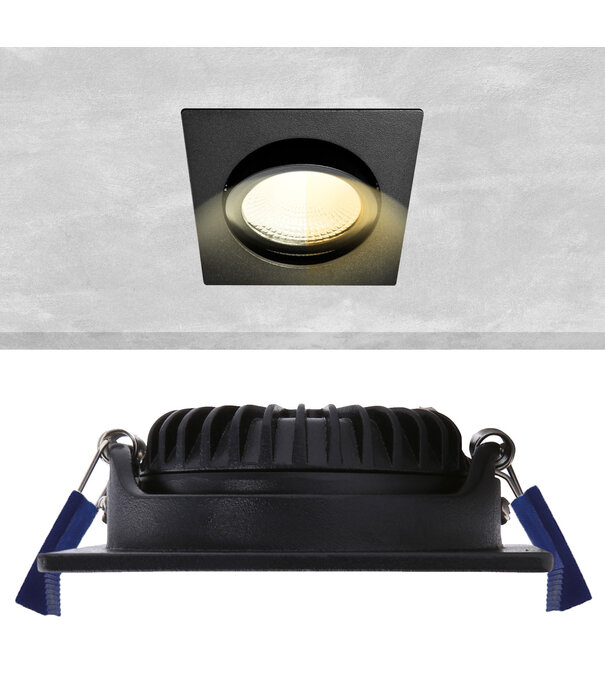

Recessed depth: 23mm
Spot light source: Ø45mm

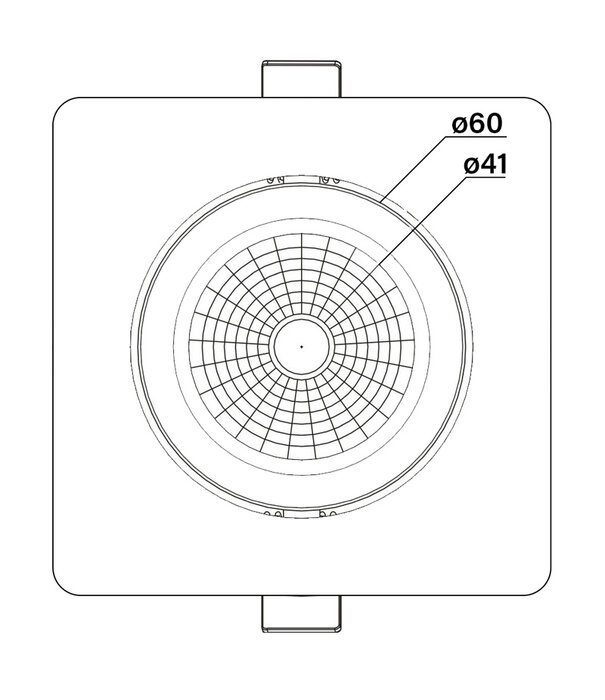

Spot incl. tilting ring: Ø60mm

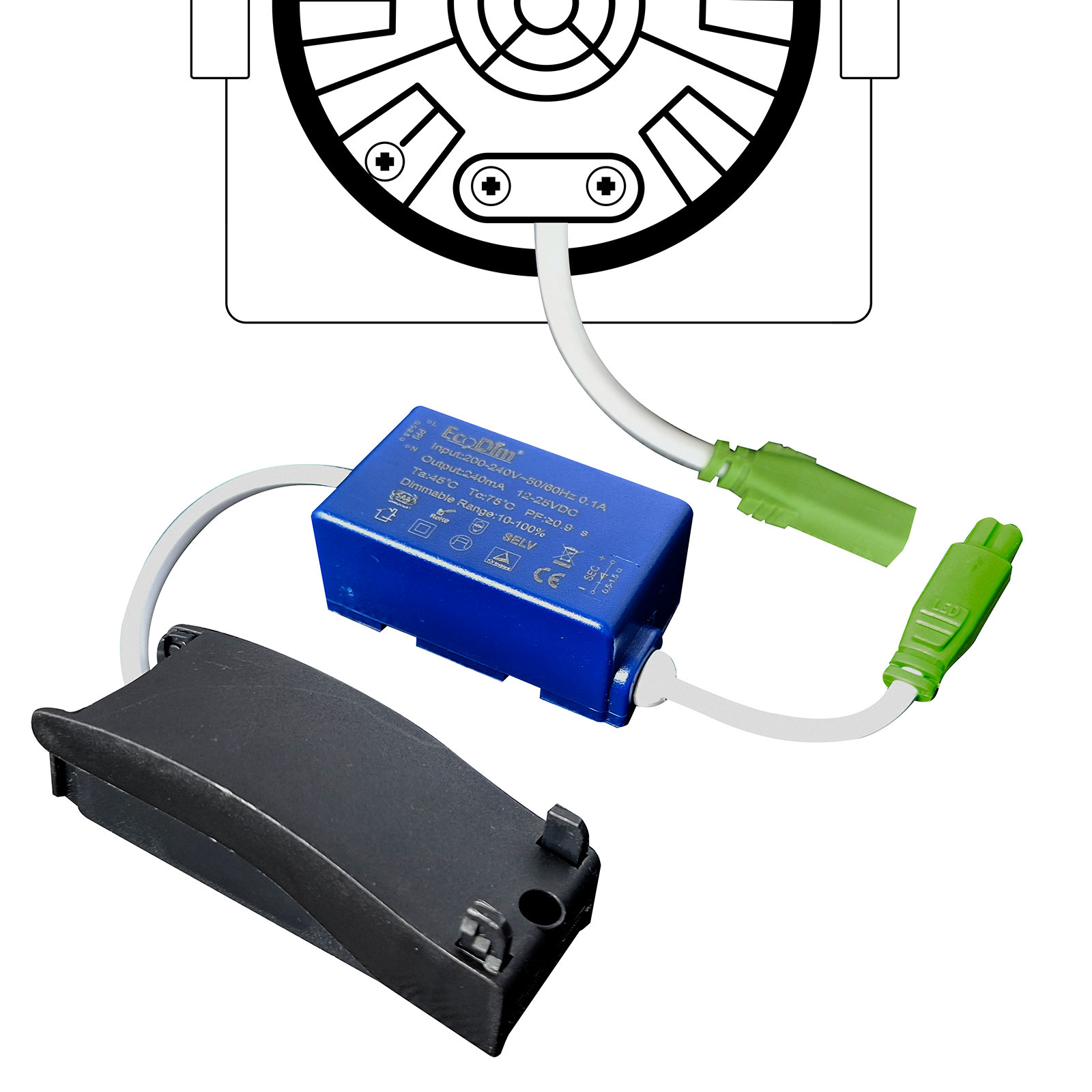

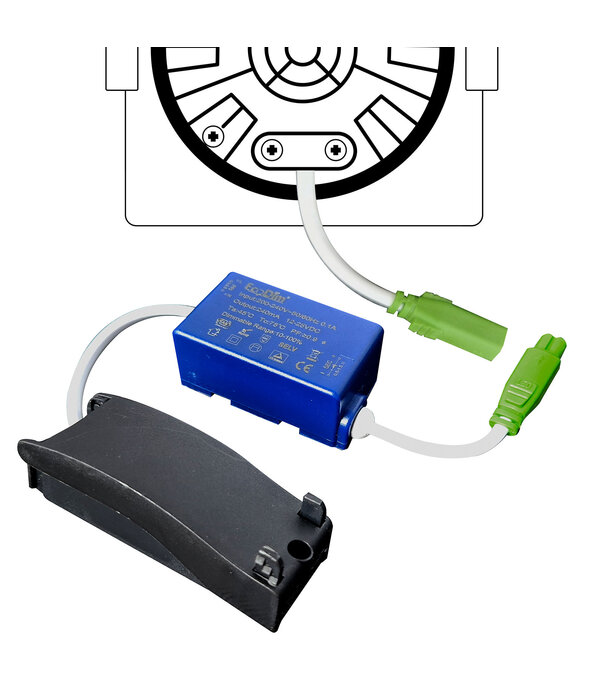

Supplied LED transformer:
Length: 95mm
Width: 38mm
Depth: 22mm
Input 220-240VAC / Output 14-25VDC
Connectable directly to 230V.
| Brand: | EcoDim |
| Power (wattage): | 5 watts |
| Voltage (input): | 220 - 240V |
| Dimming technology: | Phase cut-off / RC / Tronic |
| Operation: | N/A |
| Dimensions in mm (outer dimensions frame): | N/A |
| Installation dimensions in mm (fits any flush-mounted box): | N/A |
| Packaging: | Each |
| Warranty: | 2 years |
| Article number: | ED-10026 |
| Item number 2BA: | ED-10026 |
| Download manual: | https://cdn.webshopapp.com/shops/68389/files/389156933/20210430-handleiding-a4-ondiepe-inbouwspots.pdf |
| Philips HUE manual: |
