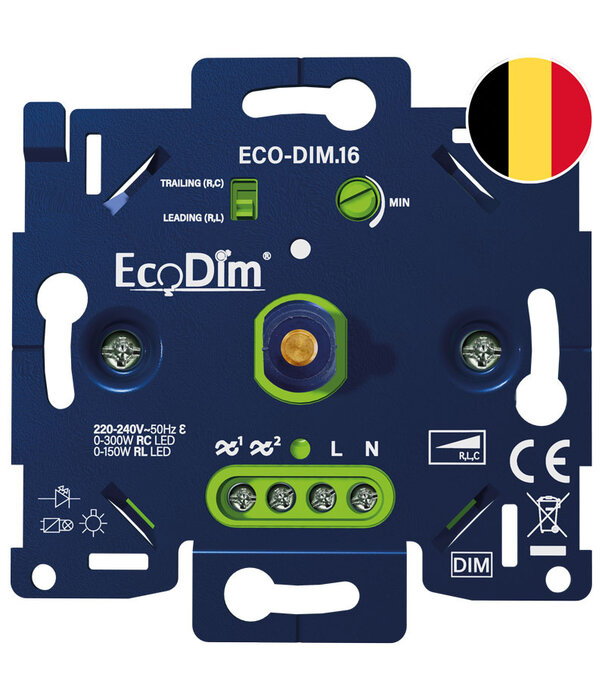

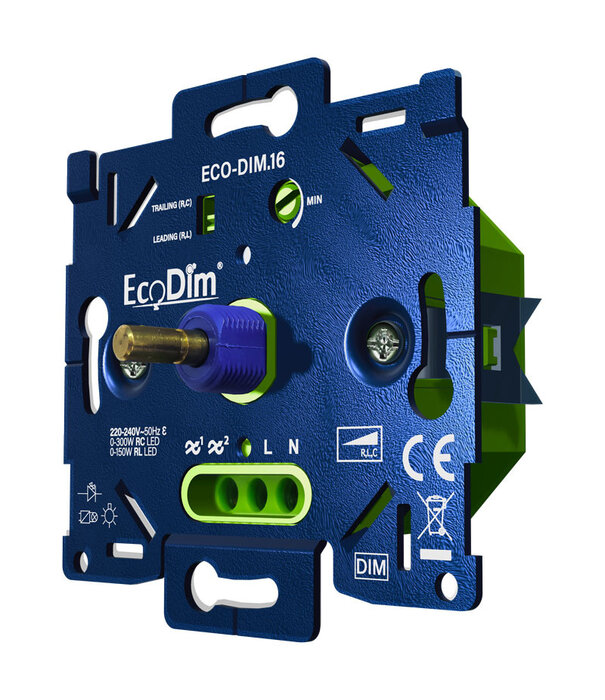

ECO-DIM.16 Led dimmer universal 0-300W (RLC)

  1. Home
  2. ECO-DIM.16 Led dimmer universal 0-300W (RLC)
Brand:
EcoDim
Article code:
ECO-DIM.16
EAN:
8719322374943
SKU:
ECO-DIM.16
Hier verkrijgbaar
Alle downloads

Product description

✓ 0-300W (RC) / 0-150W (RL) LED

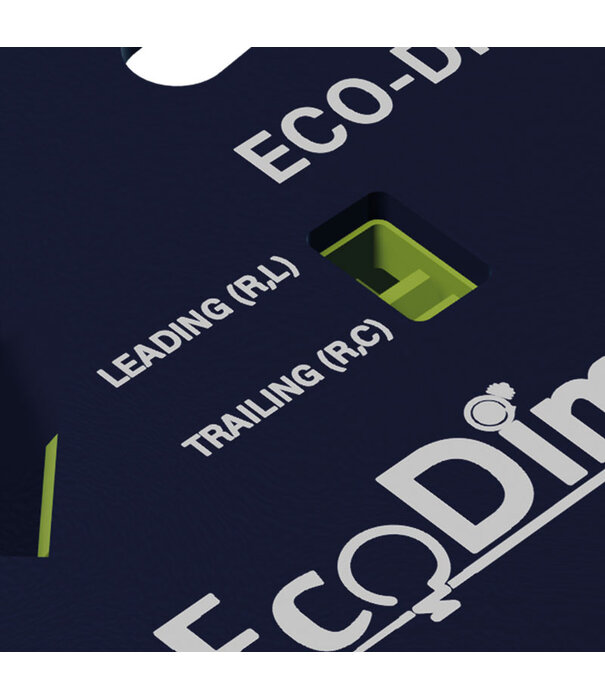

✓ Universal: Leading edge & Trailing edge (RLC)
✓ Suitable for all A-brand cover material (including Niko xxx-31000 and xxx-310003)
✓ Small mounting depth (23,8mm)

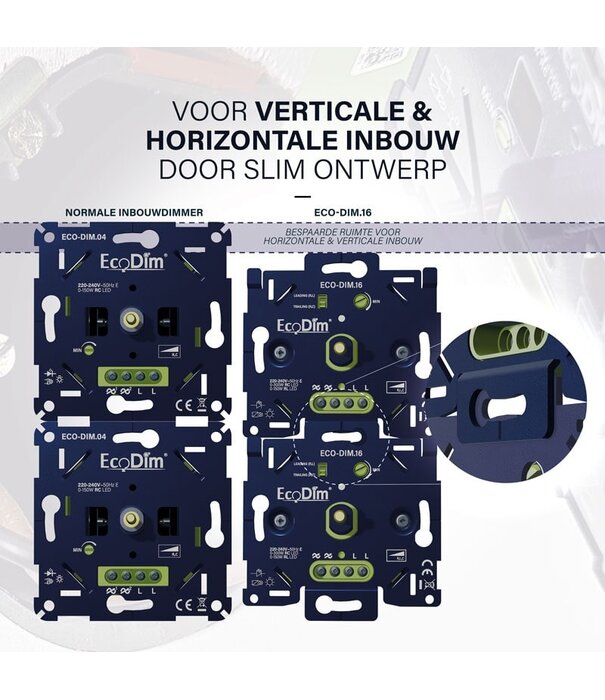

✓ Suitable for horizontal and vertical installation
✓ MIN adjustment & automatic MAX detection
✓ Protection against overload, overheating & interference signals
✓ Screw and claw mounting (supplied with built-in clamps)

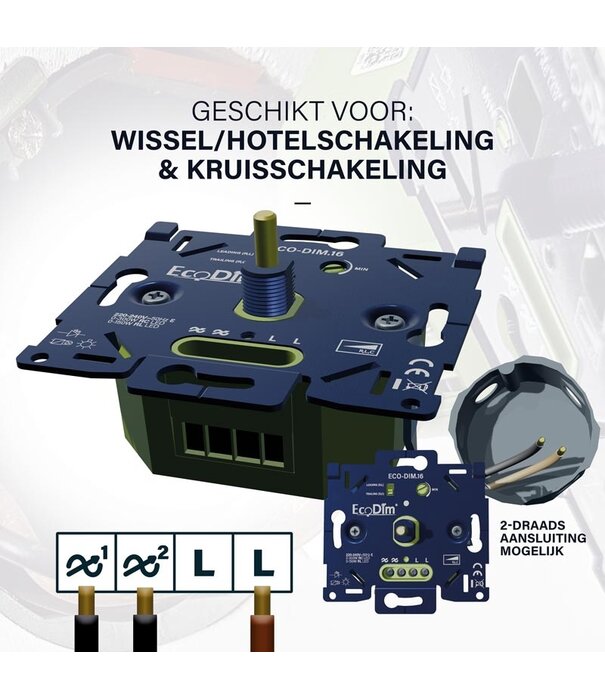

✓ Suitable for two-way switching & cross-connection
✓ Through-connection of phase wire possible (double L-gate)
✓ Suitable for all dimmable LED lamps
✓ Soft-start system
✓ Suitable for Helia, Legrand & all German brands of flush-mounted boxes



General information

Article number: ECO-DIM.16
LED dimmer type: Trailing Edge & Leading Edge / R,L,C
Power: 0-300W LED RC / 0-150W LED RL
Operation: Push/ turn
Packaging: Individually packed

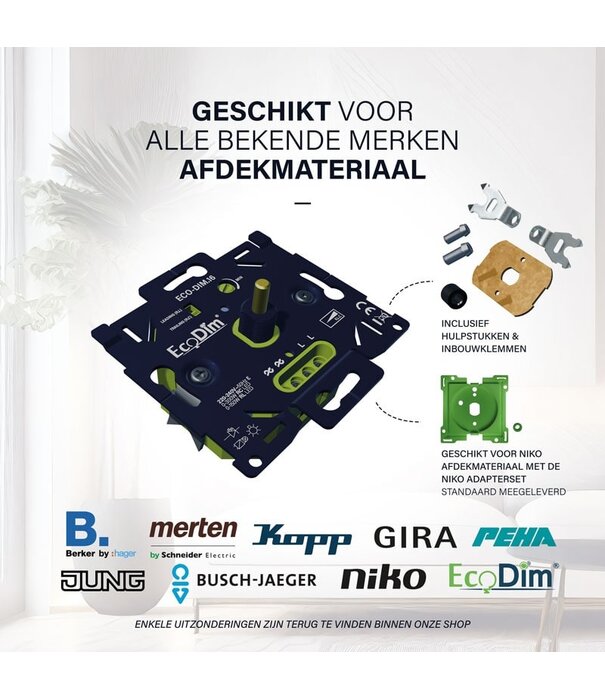

Suitable cover brands

  • Berker by Hager
  • Busch-Jaeger (except 6540-7X)
  • Gira
  • JUNG
  • Kopp
  • Merten by Schneider 51XX and System M
  • Niko XXX-31003 (if using Niko adapter, supplied as standard) and XXX-31000
  • PEHA

Not suitable:

  • Busch-Jaeger 6540-7
  • Merten D-Life
  • Niko PR20
  • Dimmer knob with D-shaped hole, such as Wintop, Plieger, GAMMA Everest

Suitable lamps

  • Led lamps 230V (max. 300W)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer, such as LED lamps with transformer (max. 300W)

Product specifications

Brand: EcoDim

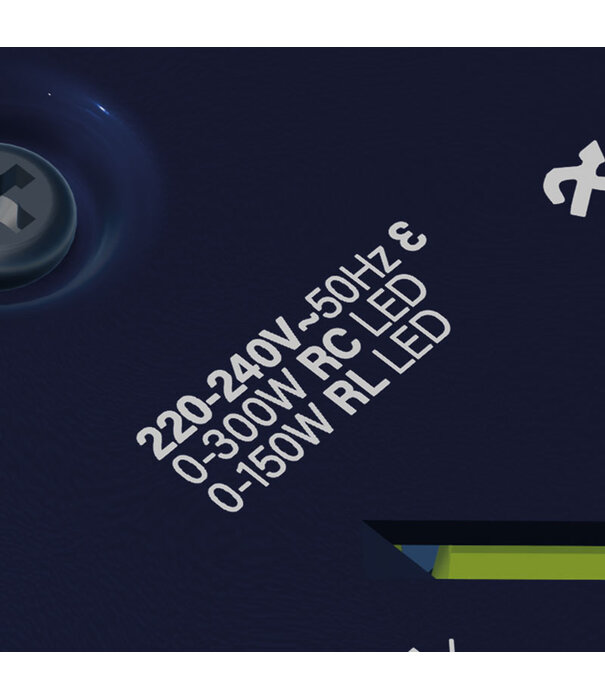

Power (wattage): 0-300W (RC)/ 0-150W (RL) LED
Voltage (input): 230V
Dimming technology: Phase cut-off & cut-on (RLC)
Operation: Push/swivel switch
Dimensions in mm (outer dimensions frame): N/A

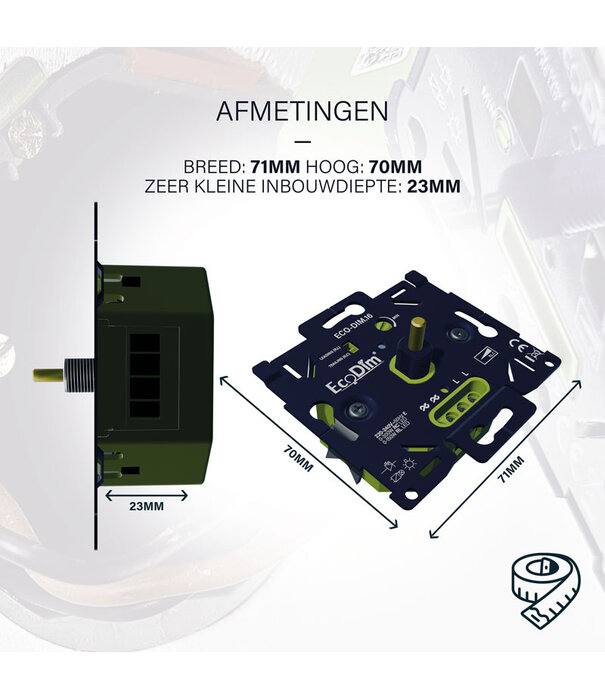

Installation dimensions in mm (fits any flush-mounted box): 70x71x23,8 (LxWxH)
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.16
Item number 2BA: ECO-DIM.15
Download manual: https://cdn.webshopapp.com/shops/68389/files/466660719/print-eco-dim16manual-nl-de-en-fr.pdf
