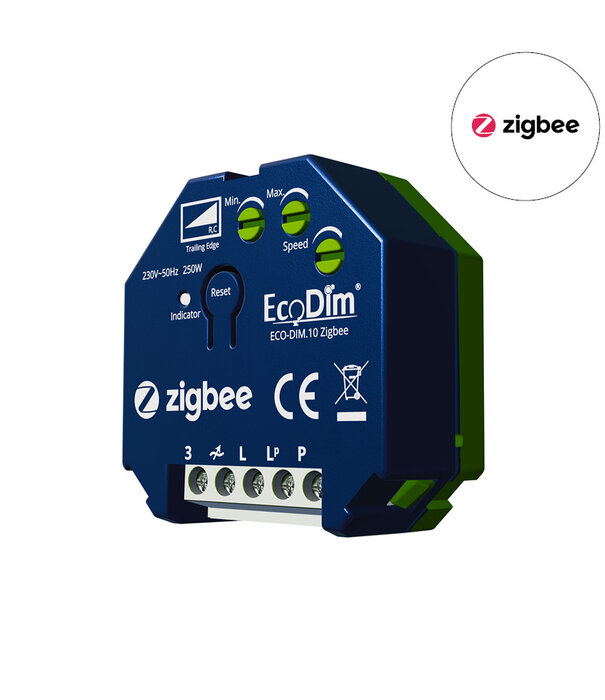

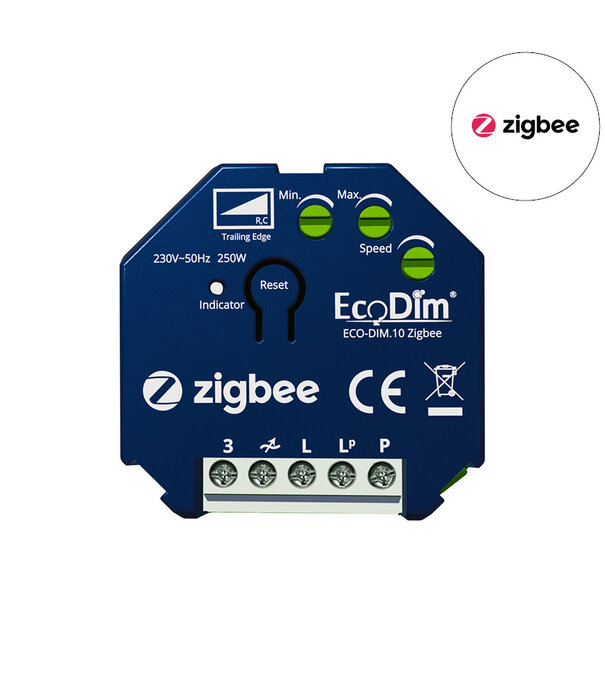

ECO-DIM.10 Zigbee led dimmer module 250W

  1. Home
  2. ECO-DIM.10 Zigbee led dimmer module 250W
Brand:
EcoDim
Article code:
ECO-DIM.10 Zigbee
EAN:
8719322371775
SKU:
ECO-DIM.10 Zigbee
Video
Hier verkrijgbaar
Alle downloads

Product description

Zigbee certified
✓ Suitable for most Zigbee home automation systems
Touchlink support
✓ Voice support (via Google Assistant/Amazon Alexa)
✓ 0-250W LED
✓ Optimal dimmability & light stability
✓ MIN, MAX and Speed adjustment
✓ Overload & interference protection

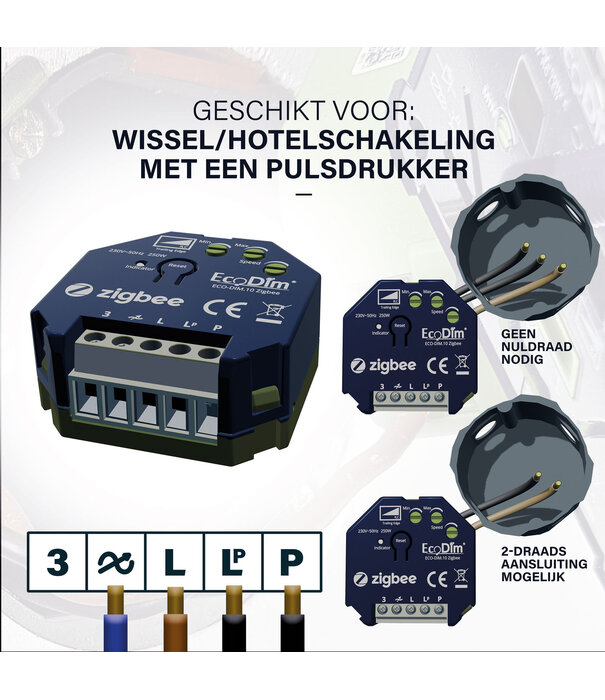

✓ Installation with existing 2 wires (optional3rd/null wire connection)

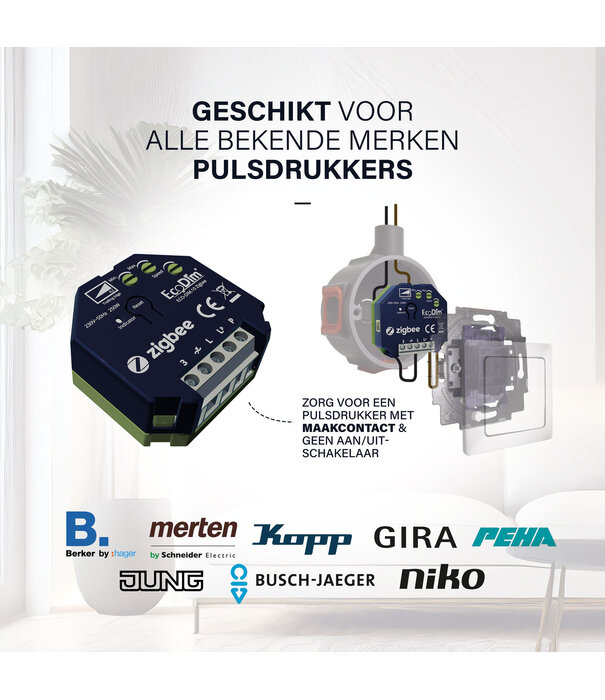

Suitable for two-way switching with pulse push-button or wireless Zigbee switch
Silent dimming
Soft-start system



General information

  • Article number: ECO-DIM.10 Zigbee
  • Article number 2BA: ECO-DIM.10-ZGB
  • Type led dimmer: Trailing Edge / Phase cut / R,C
  • Power consumption: 0-250 Watt LED
  • Control: Push button and Zigbee home automation system
  • Packaging: Individually packed
  • Dimensions in mm: 45.1*45.1*19.8mm
  • Hallmarks: CE, RoHS
  • Protocol: Zigbee 3.0
  • Frequentie: 2,4 GHz, 868/915 MHz

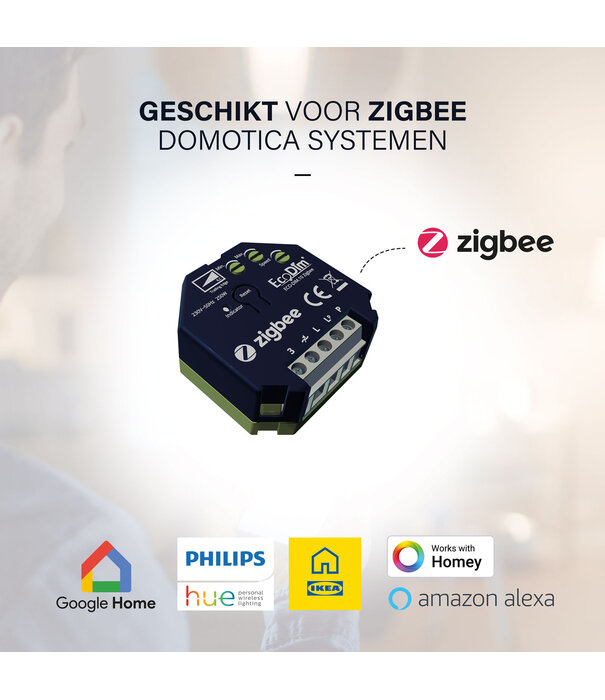

Suitable home automation systems

  • Google Home/Nest (through Zigbee hub)
  • Amazon Alexa
  • Philips Hue
  • Homey
  • Futurehome
  • KlikAanKlikUit
  • Aduro Smart
  • Samsung SmartThings
  • WINK
  • IKEA Dirigera

Not suitable:

    • TRÅDFRI (but can be linked to remote control from IKEA using touchlink)

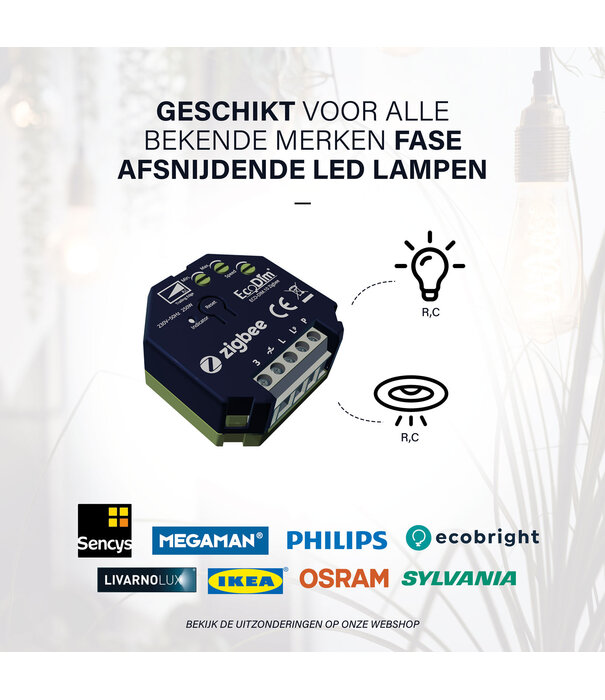

Suitable lamps

  • LED lamps 230V* (max. 250W)
  • Incandescent lamps (max. 300W)
  • Halogen lamps 230V (max. 300W)
  • Low-voltage lamps with electronic transformer/RC, such as LED lamps with transformer (max. 300W)
*Provided the lamps operate on phase cut/trailing edge.

Product specifications

Brand: EcoDim
Power (wattage): 0-250W LED
Voltage (input): 230V
Dimming technology: Smart dimmer Trailing Edge / Phase cut / R,C
Operation: Pulse switch and home automation system
Dimensions in mm (outer dimensions frame): 45.1*45.1*19.8mm
Installation dimensions in mm (fits any flush-mounted box): 45.1*45.1*19.8mm
Packaging: Each
Warranty: 2 years
Article number: ECO-DIM.10 Zigbee
Item number 2BA: ECO-DIM.10-ZGB
Download manual: https://cdn.webshopapp.com/shops/68389/files/333774906/eco-dim10-zigbee-manual.pdf
Philips HUE manual: https://cdn.webshopapp.com/shops/68389/files/374326127/handleiding-eco-dim-zigbee-dimmers-koppelen-met-ph.pdf
Datasheet
